Product Description

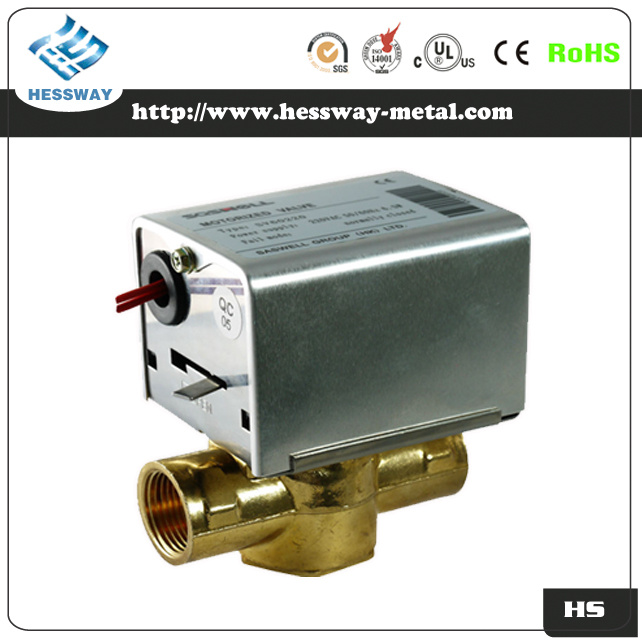

Electric Flow Control Valve with CE SIZE:1/2" , 3/4" , 1" ,(Optional)
FLSM-220 Series Motor Valve is available for central air-conditioner system and opening/closing of the heating system pipe to control the temperature. The control valve is driven by the one-way magnetic sync motor. The valve is normal close when it doesn't work. When it starts to work, the thermostat provides a signal to make the motor valve work. After the valve opens, the cold or hot water will enter the fan coil to provide the cold or hot air for the room. When the room temperature reach to the setting, the thermostat will cut off the motor valves current and the return spring will close the valve to prevent the water from entering the fan coil. The room temperature can be kept that was set by thermostat by opening/closing the valve.
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Technical indicators
Drive motor: hysteresis synchronous motor
Applicable medium: cold water, hot water
Body connection mode: in mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements
Material description
The valve body material: forged brass
Stem material: stainless steel (AISI302)
Sealing material: nitrile rubber (NBR)
Drive chassis: die casting aluminum alloy
Drive cover: flame retardant ABS engineering plastics
Actuator motor | Hysteresis synchronous motor | Media temperature range | 2°C~90°C |
Power supply | AC220V(User demand production) | Ambient temperature | 0°C~60°C |
Power consumption | <7.5W | Running time | "on": Approx. 10s,"off": Approx. 5s |
Output torque | 1.5~6.0N.m | Body pressure | 1.6 MPa |
Protect rank | IP54 | Allow differential pressure | ≤0.13 MPa |
Pipe Connection | G/BSP | Port Size | 1/2''(DN15), 3/4''(DN20), 1'' (DN25) |
