ZCQ-01B-66 (2/2 way), use with steam boiler/ironing machine/STEAM PRESS etc.
1. MADE BY OUR OWN FACTORY, CE certification
2. Port Size: Female G 1/4"
3. Inner orifice: 2.0mm and more...
4. Body material: Brass
5. Seal ring material: NBR, EPDM VITON.
6. Max Media Temperature: 90/ 160
7. Voltage available: 12V/50; DC 12V; 24V/50; DC 24V; 110/120V/50; 220/230V/50
8. Protection Class: IP 65

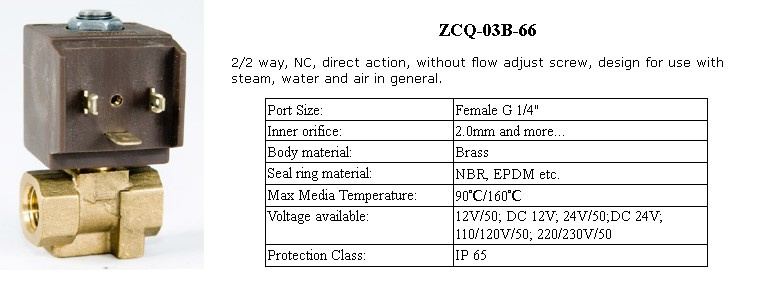

2/2 way, NC, direct action, without flow adjust screw, design for use with steam, water and air in general
We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
