Ceramic Pall Ring for Chemical Tower Packing Filling (dia25mm-76mm)

Ceramic Pall Ring for Chemical Tower Packing Filling (dia25mm-76mm)
Price: US $ 650/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,Western Union

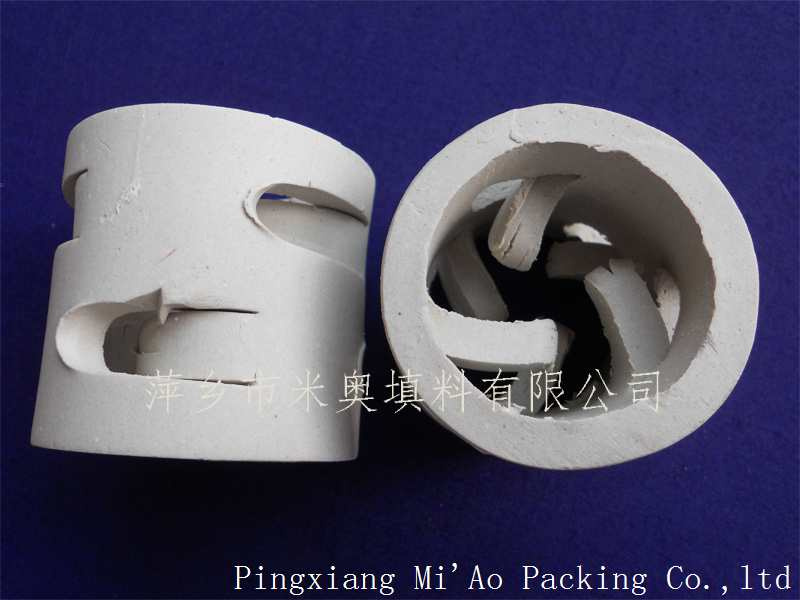

Introduction: Ceramic pall ring ,Their open structures effectuate separation of gas and liquid streams and thus facilitate a more effective mass transfer. And decrease the pressure drop. We are the top leading manufacturer, supplier for ceramic pall ring column packing.

Technical Data:
Spec.D*H*T(mm)Surface area (m²/m³)Free volume (%)Number per m³Bulk density (Kg/m³)Dry Packing Factor(m-1)
Ø 2525*25*32207354000620565
Ø 3838*38*41507513400570356
Ø 5050*50*5120786800550252
Ø 8080*80*875801950520146
Prod Model: dia25mm, dia38, dia50mm, dia76mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2'',5/8",3/4",1",1.5",2",3"
Water Adsorption: Less Than 0.3%
Accid Resistance: Larger Than 99.6%
Max Operation Temp.: 1200 Degree
Moh's Hardness: Larger Than7
Material: Ceramic
Structure Feature: Ring Form Filler
Type: Random Packing
Usage: Chemical Industry Product
Source: Particle
Packing: With Valve Bags
Effect: Improve The Chemical Reaction
PingXiang Mi'Ao Packing Co., Ltd is located in the chemical filling manufacturing base, PingXiang City, JiangXi province, China. In China, almost all chemical filling including plastic filling, ceramic filling, metallic filling are manufactured in our City. We are the most famous one not only because of our professionality but also the best quality.

Our popular products include infrared honeycomb ceramic plate, plastic hollow ball, zeolite molecular sieve, plastic chemical packing rings, ceramic packing rings, metallic chemical packing rings. All of our products are not only sold to the whole country but also exported to many foreign countries such as USA, Rotterdam, UK, Russia, India, Thailand, Singapore, Malaysia and so on.

Our most famous products are infrared honeycomb ceramic plate and plastic hollow ball. The infrared honeycomb ceramic plate is used for BBQ grill, indoors heater, household stove which can store heat, save energy, reduce CO emissions. We have more than 40 sets of molds for all standard sizes in this field and can make new mold according to customer's special requirement. We also get CE certificate and meet requirement of USA and Europe market. In industry field, plastic hollow ball could be used in the chemical tower or in the pool to cover the liquid surface which can avoid the bad smell and the liquid volatilization.

The colorful small plastic hollow ball could be used as liquid level floating mark ball. We also provide depolished and polished plastic hollow ball based on different usage. The normal material is PP, PE, RPP, PVC, CPVC, PVDF and so on. The ball sizes are from Dia 6mm to Dia 100mm. It could also customized.

The zeolite molecular sieve include 3A, 4A, 5A, 13X, we are the leading company in this field.

In the following few yeas, our focus will be the international market. We will try all of our best to bring our products to the world and let more and more people know our products and service.
