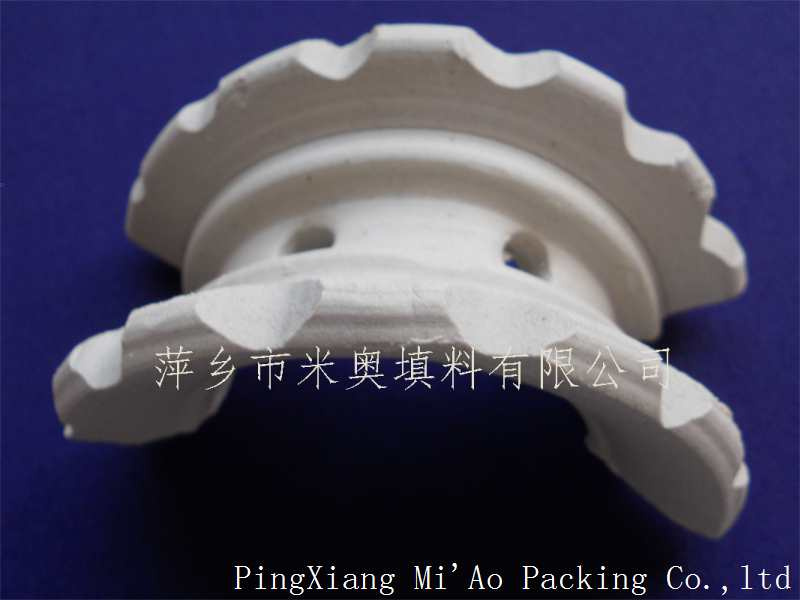

Ceramic Supper Intalox Saddle Ring with Dia 76mm
| Price: |
US $ 650/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,Western Union |
Introduction: Ceramic Super Intalox saddles rings are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes. Ceramic super saddles' smooth surface imparts a high chemical resistance and provides them with a high level of stability. Due to their simple form, Ceramic Super Intalox saddles can be produced at a relatively low cost.
| Normal Size | Approx.Weight | Surface Area | Void Fraction(%) | Dry Packing factor (m-1) |
| lb/ft3 | Kg/m3 | ft2/ft3 | m2/m3 |
| 1" | 25mm | 40 | 645 | 79.5 | 260 | 77 | 570 |
| 1.5" | 38mm | 37.5 | 600 | 64 | 210 | 78 | 430 |
| 2" | 50mm | 35.6 | 570 | 42.8 | 140 | 79 | 277 |
Physical Properties
| Index | Unit | Value |
| Porosity | Vol % | 1 |
| Specific heat | KJ/Kg | 840-900 |
| Crush strength | N/mm2 | 390-420 |
| Specific gravity | g/cm3 | 2.3-2.45 |
| Acid Resistance | % | 99.98 |
| Firing temperature | ºC | 1280 to 1320 |
| Softening point | ºC | >1400 |
| Density | Kg/m3 | 2300-2400 |
| Water absorption | % | <0.2 |
| Thermal Expansion | 10-6mm/mmºC | 4.7 |
| Hardness | Mohr Scale | 7-8 |
| Comprehensive strength | Newtons | 5600 |
| Shock strength | Kgf.cm/cm2 | 1.0-1.5 |
| Prod Model: |
Dia76mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dia25mm,38mm,50mm,76mm,100mm |
| Water Adsorption: |
Less Than 0.3% |
| Accid Resistance: |
Larger Than 99.6% |
| Max Operation Temp.: |
1200 Degree |
| Moh's Hardness: |
Larger Than7 |
| Type: |
Random Packing |
| Usage: |
Chemical Industry Product |
| Source: |
Particle |
| Packing: |
With Valve Bags |
| Material: |
Ceramic |
| Structure Feature: |
Ring Form Filler |
| Effect: |
Improve The Chemical Reaction |
PingXiang Mi'Ao Packing Co., Ltd is located in the chemical filling manufacturing base, PingXiang City, JiangXi province, China. In China, almost all chemical filling including plastic filling, ceramic filling, metallic filling are manufactured in our City. We are the most famous one not only because of our professionality but also the best quality.
Our popular products include infrared honeycomb ceramic plate, plastic hollow ball, zeolite molecular sieve, plastic chemical packing rings, ceramic packing rings, metallic chemical packing rings. All of our products are not only sold to the whole country but also exported to many foreign countries such as USA, Rotterdam, UK, Russia, India, Thailand, Singapore, Malaysia and so on.
Our most famous products are infrared honeycomb ceramic plate and plastic hollow ball. The infrared honeycomb ceramic plate is used for BBQ grill, indoors heater, household stove which can store heat, save energy, reduce CO emissions. We have more than 40 sets of molds for all standard sizes in this field and can make new mold according to customer's special requirement. We also get CE certificate and meet requirement of USA and Europe market. In industry field, plastic hollow ball could be used in the chemical tower or in the pool to cover the liquid surface which can avoid the bad smell and the liquid volatilization.
The colorful small plastic hollow ball could be used as liquid level floating mark ball. We also provide depolished and polished plastic hollow ball based on different usage. The normal material is PP, PE, RPP, PVC, CPVC, PVDF and so on. The ball sizes are from Dia 6mm to Dia 100mm. It could also customized.
The zeolite molecular sieve include 3A, 4A, 5A, 13X, we are the leading company in this field.
In the following few yeas, our focus will be the international market. We will try all of our best to bring our products to the world and let more and more people know our products and service.
