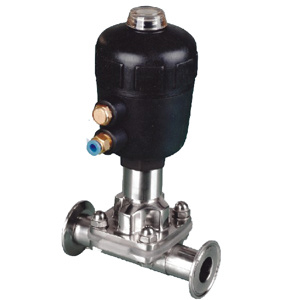

CF3m Pneumatic Sanitary Diaphragm Valve

CF3m Pneumatic Sanitary Diaphragm Valve
Price: US $ 99/Piece
Trade Terms: FOB,CFR,CPT
Min Order: 3/Piece
Pay Type: L/C,T/T,Paypal,Western Union
CF3M Pneumatic Sanitary Diaphragm Valve

1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp.: -10° C-150° C
4). Ambient Temp.: -10° C-60° C
5). Valve Body Material: Stainless Steel
6). Sealing Material: NBR, EPDM, FPM
7). Connection: Welding
Pneumatic Diaphragm Valve (Clamp)

1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp.: -10° C-+180° C
4). Ambient Temp.: -10° C-+60° C
5). Valve Body Material: Stainless Steel
6). Sealing Material: NBR, EPDM, FPM
7). Actuator Cover: PA
8). Operating Pressure: 3-8bar
8). Type: Single-acting, double-acting

Pneumatic 3-Way Diaphragm Valve

1). Inside and outside of valve body can be sterilized under high temperature
2). Driving Way: Pneumatic, normally closed (1), normally open (2), double direction (3)
4). Max. Working Pressure: 10bar (Diaphragm is EPR or FPM), 6bar (Diaphragm is PTFE for one-side use)
5). Operating Pressure: 4-6bar (1), 3-4bar (2 or 3)
6). Diaphragm Material: EPDM, FPM, PTFE
7). Valve Body Material: SS316
8). Connection: Welding, Clamp
9). Manufacture Standard: GB, DIN, ISO, SMS

Pneumatic Diaphragm Valve (Stainless Steel Head/Plastic Head)

1). Inside and outside of body can be sterilized at high temperature
2). Driving Way: Pneumatic
3). Max. Working Pressure: 10bar (Diaphragm is EPR or FPM)
4). Max. Working Temp.: 150° C
5). Diaphragm Material: EPR, FPM
6). Valve Body Material: Stainless Steel, 316L
7). Manufacture Standard: GB, DIN, ISO, SMS
Prod Model: G681F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Actuator: Pneumatic
Material: Stainless Steel
Structure: Weir Diaphragm Valve
Function: Intelligent Type
Standard: ANSI
Connection: Clamp
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.

Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.

The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
