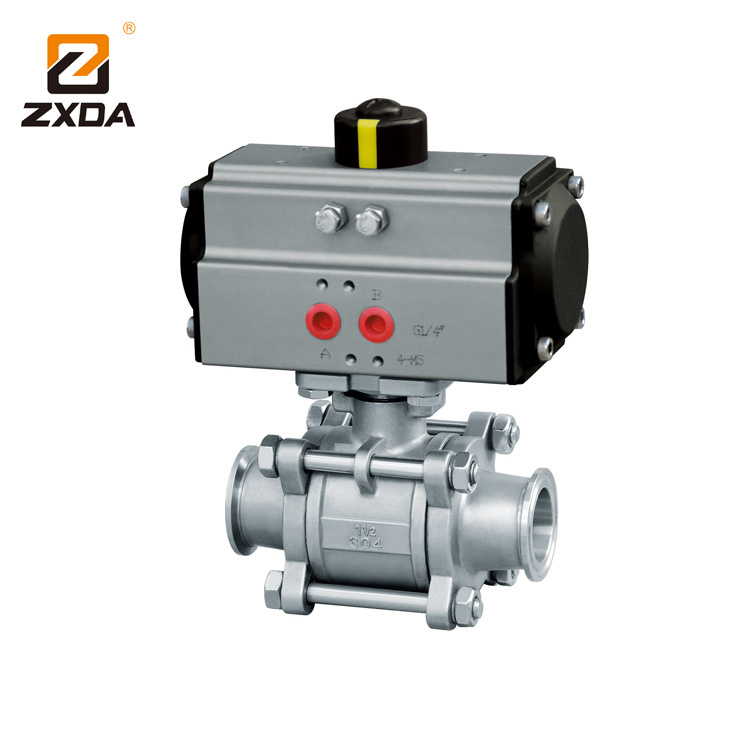

Pneumatic Sanitary Ball Valve (Clamp)
1). Nominal Diameter: DN15-100
2). Pressure Range: 0-16bar
3). Medium Temp.: -10° C~+180° C
4). Ambient Temp.: -10° C~+60° C
5). Valve Body Material: Stainless Steel
6). Sealing Material: PTFE
7). Actuator Cover: Aluminum Alloy
7). Operating Pressure: 3-8bar
8). Type: Double-acting, single-acting
Features
1. Tri-clamped Ball Valve
2. Electro and Mechanical Polishing
3. Sealing Material: PTFE, NBR, EPDM, FPM
4. Manufacture Standard: GB, DIN, ISO, SMS
5. Zero Leakage
Stainless Steel Sanitary Ball Valve with Double acting or Spring return Pneumatic actuator
Product features
· High precision ball& High tightness seat
· Long life ball&seat
· The most economical material combination
· The best fire safe and static resistance safety
· Widely applicable
· Various driving types
Product parameter
| Main material | WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
| Pressure rating | Class 150 to Class 2500 (PN2.5 to PN 420) |
| Standards applied | API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
| Operative temperature | -196 °C to 980 °C ( -320.8 °F to 1796 °F) |
| Optional operation | Manual, Gear, Electric, Pneumatic, Hydraulic. |
Actuator Features:
Pneumatic Actuators:
· Rack and pinion Actuator design
· Spring return or double acting
· Open and closed adjustment stops
· True NAMUR accessory mounting
· Visual indicator
Electric Actuators:
· 12V AC, 24V DC, 24V AC, 110V AC,220V AC
· NEMA 4 and NEMA 7 enclosures
· Manual override
· Visual indicator.
1.Newly developed facilities ensure high and stable quality.
2.Enable to supply UL/FM valves.
3.Experienced technology
4.Excellent after-sale service to satisfy customers.
5.Sufficient capacity ensures prompt delivery.
6.Continuous quality improvement and new designs development.
7.Reasonable and stable price
8.Meets different countries standards,such as ANSI,DIN,BS etc.
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.
Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.
The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
