(CFP-800) Single Acting Foot Hydraulic Pump
| Price: |
US $ 95-115/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

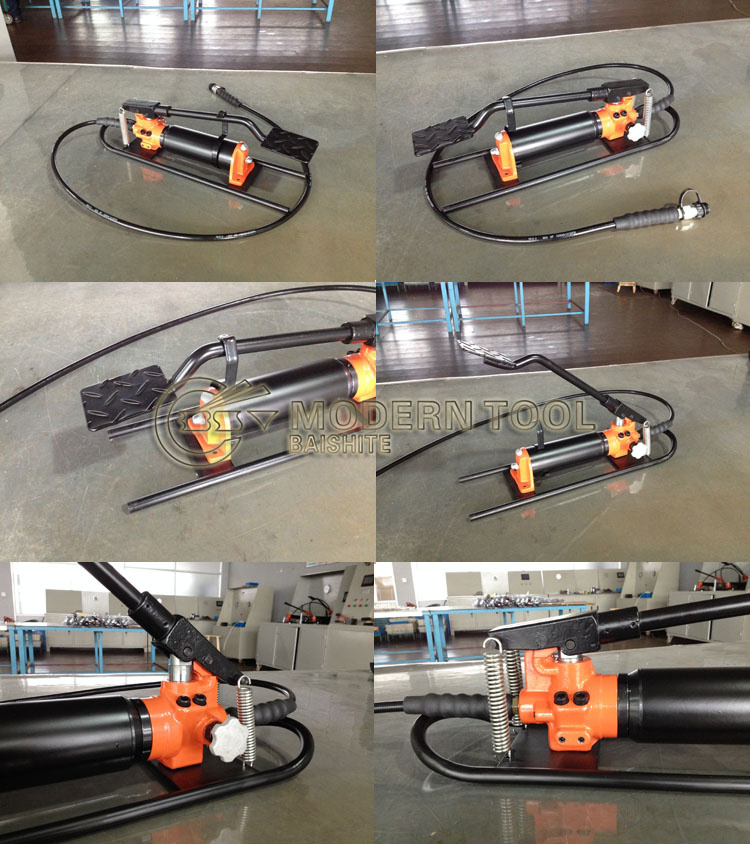

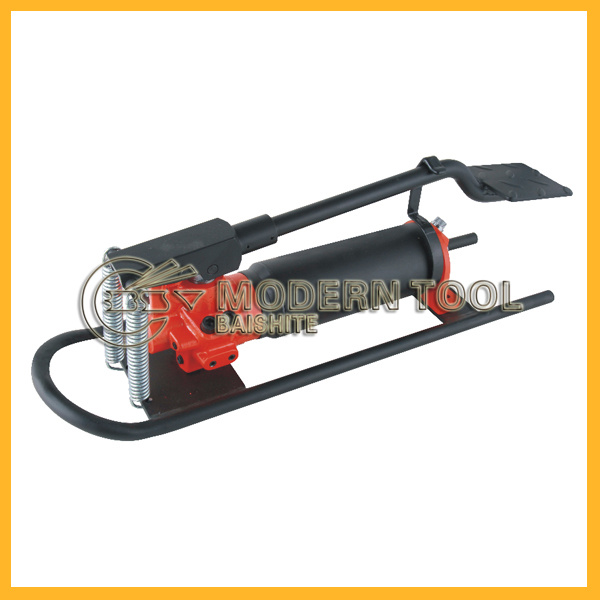

Super Pressure Pedal Style Hydraulic Pump CFP-800
1. Two stage pump: Low pressure 0-20 High pressure 20-700 kgf/cm2
2. Rapid Oil Delivery: Low 9.8 HIgh 1.9 CC/stroke
3. Safety Valve Inside: Protect hydraulic system from over pressure
4. Pedal style: Free two hands. Hands can hold the tools
5. Wide Bottom Frame: Improve stability
Specification
| 1. | Model No. | CFP-800 (Pedal/Foot Hydraulic Pump) |
| 2. | Reservoir Capacity | 800cc |
| 3. | Low Pressure | 0-20 kgf/cm2 |
| 4. | High Pressure | 20-700 kgf/cm2 |
| 5. | Oil Delivery (Low Pressure) | 9.8 cc/stroke |
| 6. | Oil Delivery (High Pressure) | 1.9 cc/stroke |
| 7. | Oil pipe coupler thread | PT 3/8" |
| 8. | Weight | 10.1kg |
| 9. | Size | 520*140*170mm |
| Prod Model: |
CFP-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Two Stage Pump: |
High and Low Pressure |
| Pressure: |
Low: 0-20 High: 20-700 Kgf/Cm2 |
| Oil Delivery: |
Low: 9.8 High: 1.9 CC/Stroke |
| Oil Capacity: |
1200CC |
| Safety Valve Inside: |
Protect Hydraulic System |
| Pedal / Foot Style: |
Free Two Hands |
| Standard Accessary: |
Oil Pipe (With PT 3/8" Coupler) |
| Optional Accessary: |
Pressure Gauge |
| Size: |
710*192*190mm |
| Weight: |
12.7kg ( Without Oil Pipe) |
| Pressure Medium: |
Oil |
| Type: |
Handheld |
We, Yuhuan Modern Tools Co., Ltd, a professional tool manufacturer, was established in 2002, officially start our business with the hydraulic crimping tool, then with the development of our factory and also in order to keep pace with the demand of our customers, we gain our own brand "BAISHITE" in our local market and extend our product range step by step to: Hydraulic cutting tool, busbar punching, bending, cutting tool, puncher, compatible hydraulic pump, hydraulic jack, Ratchet Cable cutter, mechanical crimping pliers, long-Arm cutters, all these tools can be widely used in electric construction and distribution project for cutting, crimping, lifting, to make the job easy, quick and safe.
In order to expand our production and make our company more competitive, we bid for the land, built and moved to our current factory in 2007 (Factory Address: Bingang Industrial Area Shamen Yuhuan Zhejiang China 317607), the new machines (CNC Machine, Linear Cutting Machine, Grinding Machine, Punching Machine, Heat Treatment Machine etc) are also purchase accordingly. Now, we produce tools and provide service for customers from Germany, Russia, Ukraine, UAS, Japan, Korea, Taiwan, Thailand, Singapore, Hongkong etc., relative Certificate (ISO CE) are also applied and gained. With the feedback from our customers, we also improve tools and change tools design, to make our tools more qualified and meet the changing demand of the target market. Now, we officially add the battery powered tools (crimping, cutting, punching) in our products range, to aim to the high-level market.
Considering the potential of Plumbing tools in Australia, Brazil, Germany, Russia and also our domestic market, based on our current tools, we also start to design and produce crimping tools, pressing tool, expanding tools for PEX pipe, Multi-layer Composite Pipe, Stainless Steel Pipe and Copper Pipe in hydraulic, Mechanical and battery powered style. Thanks to the contribution of our workers and the support our customers, these brand new pluming tools also get positive market feedback.
Keep improving current tools, Never Stop designing New tools for new application, we are confident that we'll make our factory more competitive with more qualified tools and better service
