| Price: | US $ 7-9/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 300/Set |
| Pay Type: | L/C,T/T,D/P |
Specifications:
| NO. | Type No. | Produce Name | suitable Medium | PN (Mpa) | DN (mm) | Outlet thread(mm) | Jiont Thread to cylinder (mm) | Temp./Pressure of safety device |
| 1 | CGA200 | Brass neddle type cylinder valve for C2H2 | C2H2(acetylene) | 3 | 3 | CGA200 | 3/8-18-NGT | 100deg±5deg |
| 2 | CGA300(QF-70) | Brass neddle type cylinder valve for C2H2 | C2H2(acetylene) | 3 | 4 | .825-14NGO-RH | 3/4-14-NGT | |
| 3 | CGA320 | Brass flapper type cylinder valve for CO2 | CO2 | 15 | 4 | CGA320 | 3/4-14-NGT | 21±1.5 |
| 4 | CGA326 | Brass flapper type cylinder valve for N2O | N2O | 15 | 4 | CGA326 | GB8335 PZ27.8 | 21±1.5 |
| 5 | CGA350 | Brass coupling type cylinder valve for CO2 | CO2 | 15 | 7 | CGA350 | 3/4-14-NGT | 21±1.5 |
| 6 | CGA510(QF-72) | Brass coupling type cylinder valve for C2H2 | C2H2(acetylene) | 3 | 4 | Female Thread CGA510 | 1-11 1/2 -NGT | |
| 7 | CGA510-1(QF-71) | Brass flapper type cylinder valve for C2H2 | C2H2(acetylene) | 3 | 4 | Female Thread885-14NG0-LH | 3/4-14-NGT | |
| 8 | CGA520 | Brass neddle type cylinder valve for C2H2 | C2H2(acetylene) | 3 | 3 | CGA520 | 3/8-18-NGT | 100deg±5deg |
| 9 | CGA540 | Brass flapper type cylinder valve for O2(oxygen) | O2,N2,Air | 15 | 4 | CGA540 | 3/4-14-NGT | 21±1.5 |
| 10 | CGA555 | Brass flapper type cylinder valve for N2 | N2,O2,Air | 15 | 4 | CGA555 | GB8335 PZ27.8 | 21±1.5 |
| 11 | CGA580 | Brass flapper type cylinder valve for H2 | He,Ne,Ar,Kr,Xe | 15 | 4 | Female Thread CGA580 | 1-11 1/2 -NGT | 21±1.5 |
| 12 | CGA590 | Brass flapper type cylinder valve for O2(oxygen) | O2,N2,Air | 15 | 3 | Female Thread CGA590 | 3/4-14-NGT | |
| 13 | CGA870A | Cylinder valve for O2(oxygen) | O2 | 15 | 1.5 | 7 clip2-4.7 fixed mpin | 3/4-16-UNF | steelcylinder21-23.2 Aluminum cylinder22.9-25.5 73deg±3deg |
| 14 | CGA910 | Cylinder valve for N20 | N20 | 15 | 2.5 | 7 clip2-4.7 fixed mpin | 3/4-14-NGT | |
| 15 | CGA670 | Brass neddle type cylinder valve for mixed gas | mixed gas(Cl2,etc) | 2 | 7 | Male thread CGA670 | 3/4-14-NGT |

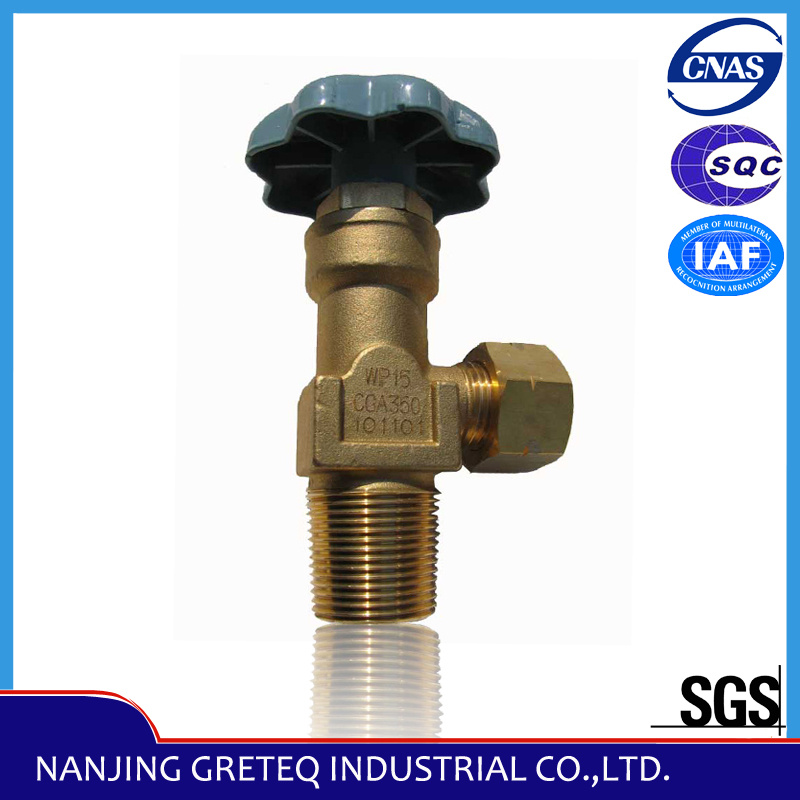

| Prod Model: | CGA350 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: | Standard |
| Power: | Manual |
| Material: | Brass, Brass Hpb59-1 |
| Pressure: | Medium Pressure |
| Port Size: | Outlet Cga350, Inlet GB8335 Pz27.8 |
| Temperature Of Media: | Normal Temperature |
| Structure: | Shutoff |
| Loading Port: | Shanghai Port |
| Delivery Time: | Within 10 Days |
| Suitable Medium: | C02(Carbon Dioxide) |
