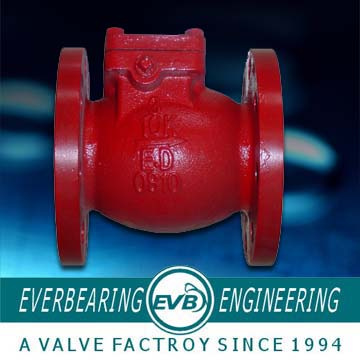

Check Valve
Material: FC200
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: 10K
Check Valve
|
Specification |
|
Design Standard: JIS B2045 Face to Face: JIS B2002 Flange Dimension: JIS 2212 Test Standard: JIS B2003 |
|
Working Temp: 100 ° C Working Pressure: 10K Suitable Media: Water, Steam, Oil ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping systems, valves should be left in an open position to allow complete drainage. Check Valve |
|
JIS 10K Swing Check Valve Materials |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Wedge |
ASTM A126A(B) |
GG20 GG25 |
|
4 |
Hinge Pin |
A216 WCB |
GS-C25 |
|
5 |
Hinge |
ASTM A126A(B) |
GG20 GG25 |
|
6 |
Nut |
A216 WCB |
GS-C25 |
|
7 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
8 |
Split Pin |
A216 WCB |
GS-C25 |
|
9 |
Bonnet Gasket |
Graphite |
Graphite |
|
10 |
Bolt |
A216 WCB |
GS-C25 |
|
11 |
Washer |
A216 WCB |
GS-C25 |
|
12 |
Nut |
A216 WCB |
GS-C25 |
|
Dimensions( JIS B2212 Swing Check Valve) |
|
DN |
D |
D1 |
L |
H |
b |
n |
d |
|
50 |
155 |
120 |
203 |
153 |
20 |
4 |
19 |
|
65 |
175 |
140 |
216 |
162 |
22 |
4 |
19 |
|
80 |
185 |
150 |
241 |
176 |
22 |
8 |
19 |
|
100 |
210 |
175 |
292 |
220 |
24 |
8 |
19 |
|
125 |
250 |
210 |
330 |
226 |
24 |
8 |
23 |
|
150 |
280 |
240 |
356 |
256 |
26 |
8 |
23 |
|
200 |
330 |
290 |
495 |
298 |
26 |
12 |
23 |
|
250 |
400 |
355 |
622 |
376 |
30 |
12 |
25 |
|
300 |
445 |
400 |
698 |
410 |
32 |
16 |
25 |
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
