Applications

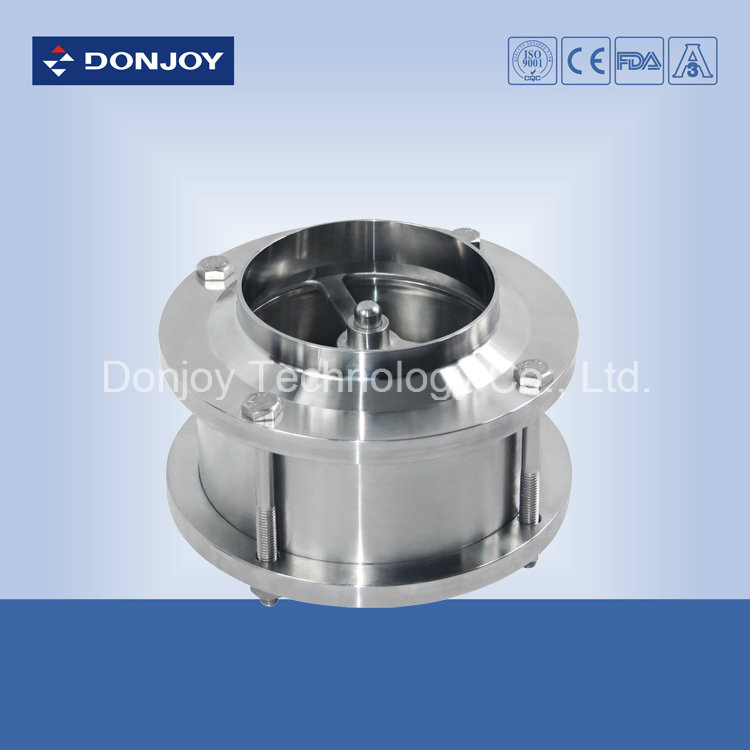

check valve is segined to prevent fluid from flowing back and ensure the flow to one way direction.
It can be used to reduce the loss of fluid back suction,avoid ingpipe-hammering.
It is used in the food-processing, beverages, winery, oil, cosmetics,
pharmaceutical and chemical industries.
Operating principle:
The valve opens when pressure of the fluid exceeds the spring pressure.While it is closed when the two pressures are close equal.And stronger counter-pressure also makes the valve close.
Design and features:
Available sizes:DN-40/1.5"to 200/8"
Easily disassemble.
compact construction.
Boby/shaft :AISI 316L/SS304
Spring: AISI 301
Seal: EPDM according to FDA177.2600
Surface finishing: Ra≤0.8μm
Seal:NBR, FPM (Viton) or PTFE. FDA 177.2600(optional) Connections: weld, thread, clamp, DIN, SMS, RJT, IDF, ISO,3A
Max. pressure :10 bar
Opening pressure:
0.2 bar (DN-32/40)
0.1 bar (DN-50/200)
Working temperature -10ºC to +120ºC (EPDM)
| Model: | 20109 |
| Material of valve: | AISI 304, AISI 316L |
| Standard of valve: | DIN/SMS/3A/ISO/IDF |
| Flux domination of pipeline: | DN25-150&1"-6", applied to the stainless steel pipeline system |
