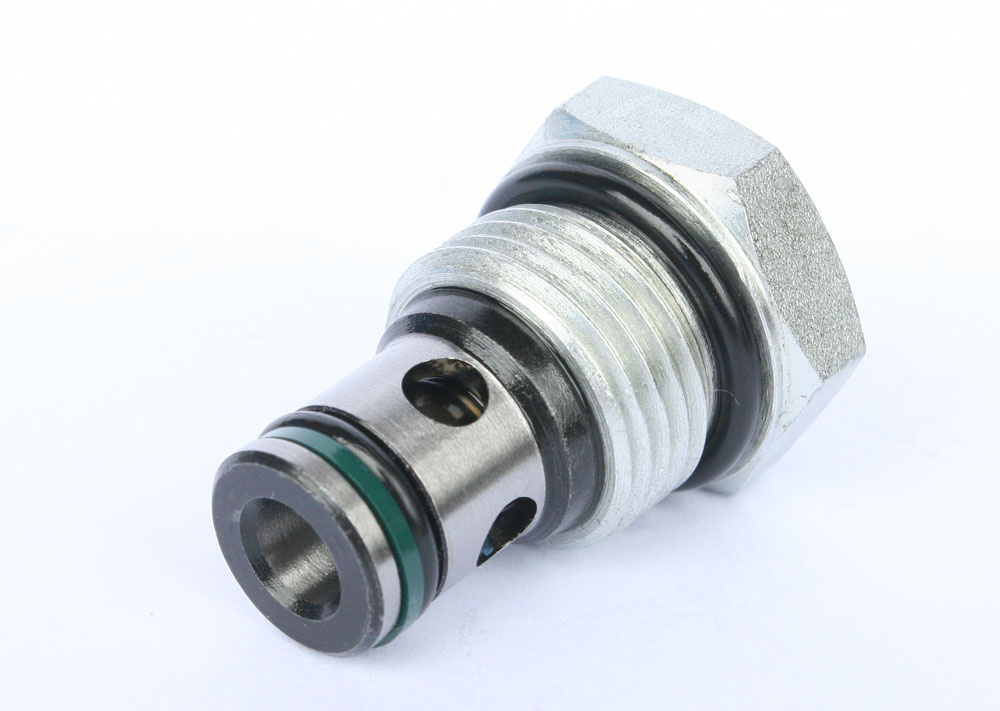

YZD08-02/Y,
Check valves
(ball-type )
Working Position:
The valve allows flow from 1 to 2 with very low pressure drop, while blocks flow 2 to 1. The valve blocks flow from 1 to 2 until sufficient pressure is applied at 1.
Features:
Low leakage
Hardened poppet and seat for long life
Industry common cavity
Compact size
Specifcations:
Max working pressure: 315 Bar
Flow max: 30L/min
Internal Leakage: Less than 0.3ml / min at 210 bar
Temperature: -30 degree -------110 degree
Filtration of oil: 25 or better
Fluids: Mineral based fluids
For other fluid compatibility consult factory.
Installation torque: 24.5---27.2 Nm
.
