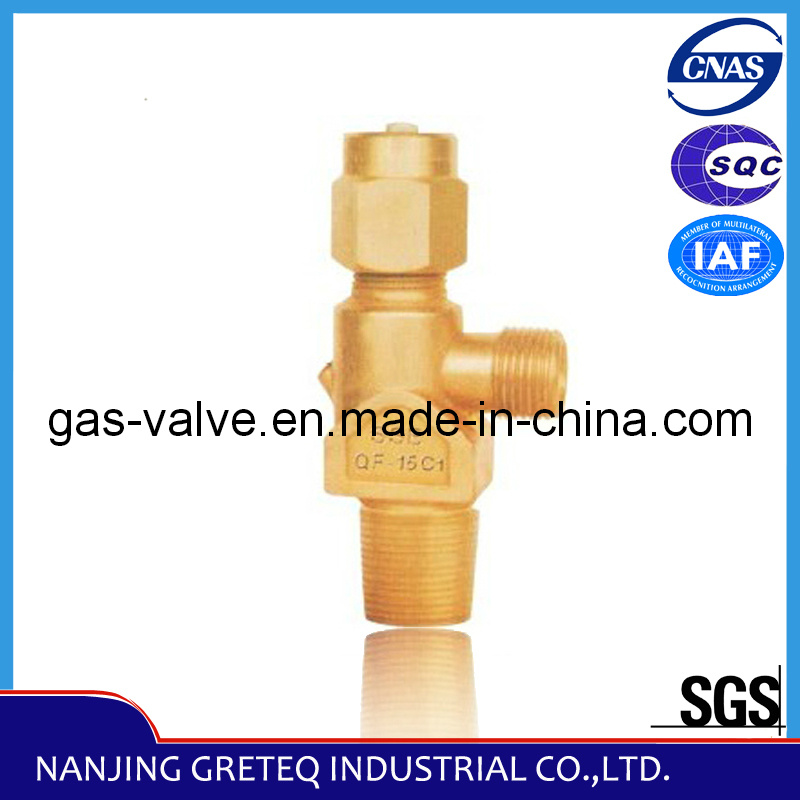

China Manufacture QF-15C1 Acetylene Fuel Cylinder Valve in High Quality
Specifications
1)Suitable Medium: C2H2
2)Working Pressure: 3Mpa
3)Nominal diameter: DN3mm
4)Outlet thread: G5/8-LH
5)Inlet thread(Joint thread to cylinder): 1-11 1/2 NGT
6)Safety device: 110° C± ° 5C
Quality certificate
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment in People's Republic of China TSF210024-2012
NO. |
Type No. |
Produce Name |
suitable Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread
(mm) |
Jiont Thread to
cylinder (mm) |
Temp./Pressure
of safety device |
1 |
QF-15 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
3 |
Φ21 clip |
Φ35.52 |
/ |
2 |
QF-15A |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Φ21 clip |
GB8335 PZ39 |
100deg±5deg |
3 |
QF-15A1 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Female Thread G5/8-LH |
GB8335 PZ39 |
100deg±5deg |
4 |
QF-15A1B |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Female Thread G5/8-LH |
GB8335 PZ39 |
100deg±5deg |
5 |
QF-15A2 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
G5/8-LH |
GB8335 PZ39 |
100deg±5deg |
6 |
QF-15A3 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
G1/2 |
GB8335 PZ39 |
100deg±5deg |
7 |
QF-15A5 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
G1/2 |
1-11½ -NGT |
/ |
8 |
QF-15A6 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
G1/2 |
1¼ -11½ -NGT |
/ |
9 |
QF-15A7 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Φ21 clip |
1-11½ -NGT |
/ |
10 |
QF-15A8 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Female Thread G3/4 |
GB8335 PZ39 |
100deg±5deg |
11 |
QF-15A9 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
Φ21 clip |
GB8335 PZ27.8 |
/ |
12 |
QF-15A14 |
Brass Acetylene Cylinder
valve(C2H2 cylinder) |
C2H2(acetylene) |
3 |
4 |
CGA300 |
GB8335 PZ39 |
100deg±5deg
|
