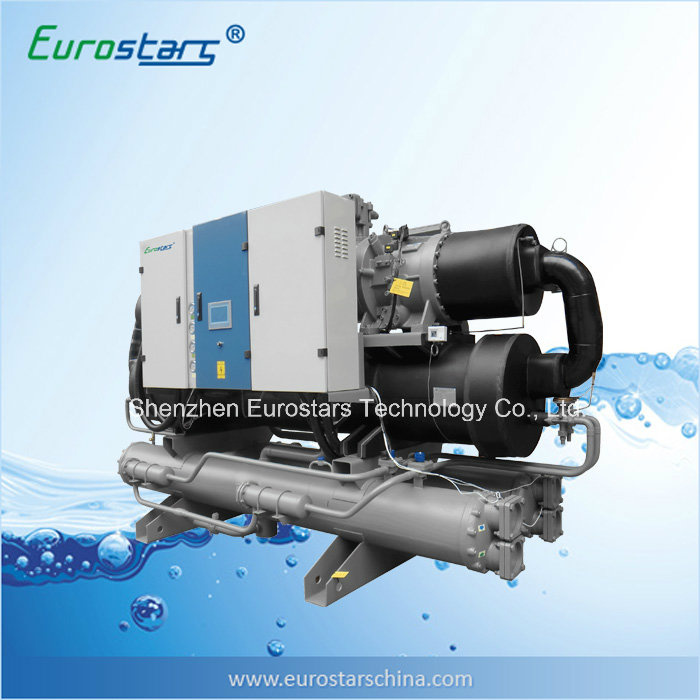

China Water Cooled Screw Type Water Chiller

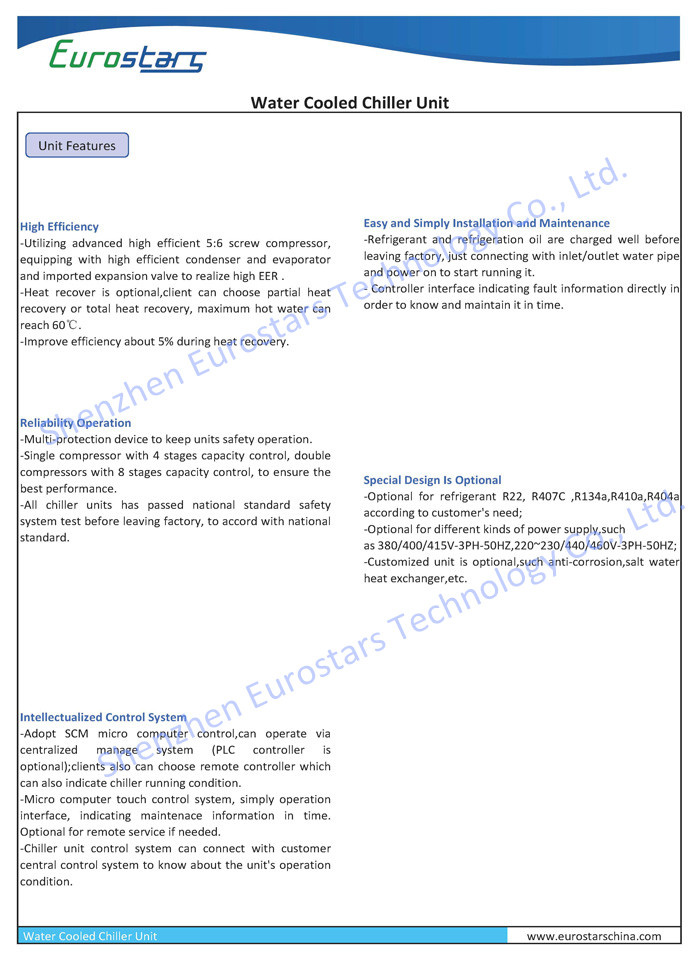

1. Features: Water cooled screw water chiller
(1) Water chiller with high efficient screw compressor; (2)Chiller with high efficient condenser and evaporator; (3) Water cooled Chiller with imported expansion valve;(4) Chiller application: Eurostars water cooled screw water chiller with widely capacity, chilled water outlet temperature range 5ºC~20ºC, it supplys cooling air, water cooled chiller is widely applied in the hotel, supermarket and commercial office building, etc.

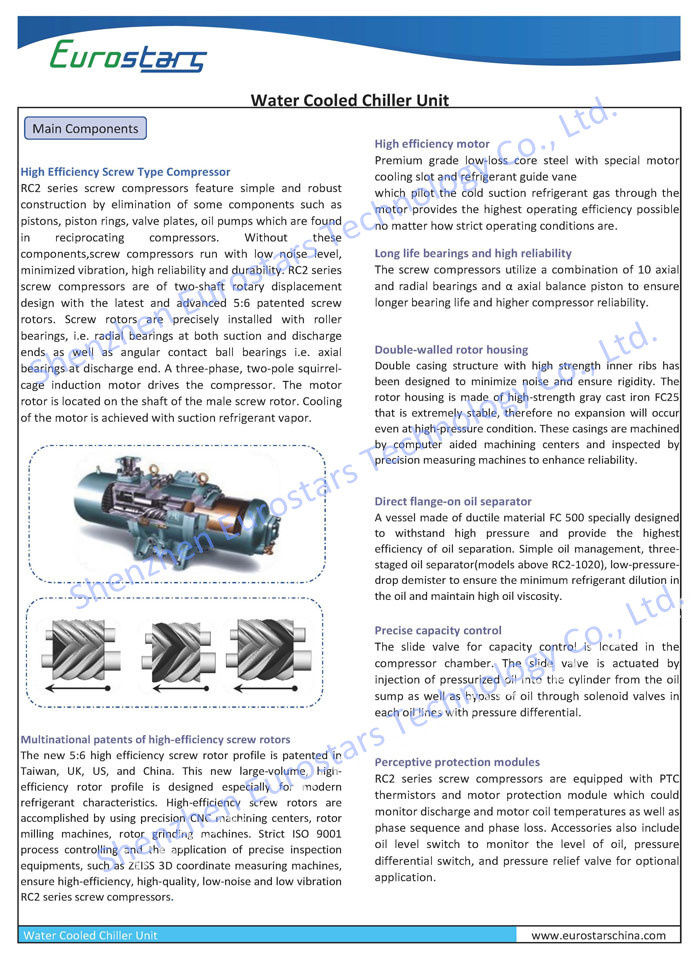

2.Main parts:-Water cooled screw water chiller
3.Techinal Specification-Water cooled screw water chillerModel ESGW | 025SON | 035SON | 045SON | 060SON | 065SON | 080SON | 090SON | 100SON | 105SON | 125SON |
Rated Cooling Capacity | KW | 90 | 119 | 154 | 211 | 230 | 273 | 315 | 344 | 371 | 439 |
USRT | 25.4 | 33.9 | 43.8 | 59.9 | 65.4 | 77.5 | 89.5 | 97.8 | 105.6 | 124.9 |
×1000Kcal/h | 77.0 | 102.7 | 132.5 | 181.1 | 197.8 | 234.3 | 270.7 | 295.8 | 319.3 | 377.8 |
lnput power | KW | 21.2 | 27.8 | 34.4 | 47.0 | 51.6 | 57.5 | 67.1 | 73.3 | 80.4 | 93.1 |
Comp. Current (A) | 37.5 | 49.2 | 60.9 | 83.2 | 91.3 | 101.7 | 118.7 | 129.8 | 142.2 | 164.8 |
Refrigerant | R407C |
Power Supply | 3φ-380V-50HZ |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Reserved water flow protection interface. |
Number of Refrigeration Circuit | 1 |
Capacity Control (%) | 0, 66, 100 | 0, 50, 75, 100 |
Refrigerant Charge (kg) | 17 | 24 | 30 | 40 | 44 | 52 | 59 | 65 | 71 | 86 |
Condenser | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia. of Pipe to Condenser (inch) | 2" | 2-1/2" | 3" | 3" | 3" | 3" | 4" | 4" | 4" | 5" |
Cooling Water Flow (m3/h) | 19.0 | 25.3 | 32.4 | 44.3 | 48.4 | 56.7 | 65.7 | 71.8 | 77.7 | 91.6 |
Condenser Water Pressure drop (kPa) | 41 | 47 | 45 | 53 | 52 | 52 | 50 | 50 | 50 | 51 |
Evaporator | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia.of Pipe to Evaporator (inch) | 2" | 2-1/2" | 3" | 3" | 3" | 3" | 4" | 4" | 4" | 4" |
Chilled Water Flow (m3/h) | 15.4 | 20.5 | 26.5 | 36.2 | 39.6 | 46.9 | 54.1 | 59.2 | 63.9 | 45.6 |
Evaporator Water Pressure drop (kPa) | 22 | 28 | 32 | 35 | 45 | 55 | 61 | 66 | 63 | 43 |
Running Noise dB(A) | 73.1 | 73.7 | 74.8 | 79 | 79.2 | 79.6 | 80.4 | 81.5 | 83.1 | 84.2 |
Total weight (kg) | 880 | 910 | 1080 | 1220 | 1390 | 1510 | 1620 | 1730 | 1830 | 2140 |
Running Weight(kg) | 970 | 1010 | 1220 | 1380 | 1530 | 1670 | 1780 | 1870 | 2020 | 2390 |
Dimension L×W×H (mm) | Detailed dimensions are according to the actual finished product sizes. |
Model ESGW | 050DON | 070DON | 090DON | 120DON | 130DON | 155DON | 180DON | 210DON | 250DON | 265DON |
Rated Cooling Capacity | KW | 179 | 239 | 308 | 421 | 460 | 545 | 630 | 743 | 879 | 928 |
USRT | 50.9 | 67.9 | 87.7 | 119.8 | 130.8 | 155.0 | 179.0 | 211.1 | 249.9 | 263.8 |
×1000Kcal/h | 154.0 | 205.3 | 265.1 | 362.2 | 395.6 | 468.6 | 541.4 | 638.5 | 755.6 | 797.7 |
lnput power | KW | 42.4 | 55.7 | 68.8 | 94.0 | 103.2 | 115.0 | 134.1 | 160.7 | 186.2 | 196.7 |
Comp. Current (A) | 75 | 98.4 | 121.8 | 166.4 | 182.6 | 203.4 | 237.4 | 284.4 | 329.6 | 348.0 |
Refrigerant | R407C |
Power Supply | 3φ-380V-50HZ |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Reserved water flow protection interface. |
Number of Refrigeration Circuit | 2 |
Capacity Control (%) | 0, 33, 50, 66.5, 83, 100 | 0, 25, 37.5, 50, 62.5, 75, 87.5, 100 |
Refrigerant Charge (kg) | 34 | 48 | 61 | 80 | 87 | 105 | 118 | 143 | 171 | 179 |
Condenser | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia. of Pipe to Condenser (inch) | 3" | 3" | 4" | 4" | 5" | 5" | 5" | 5" | 4"×2 | 4"×2 |
Cooling Water Flow (m3/h) | 38.1 | 50.6 | 64.8 | 88.6 | 96.9 | 113.5 | 131.3 | 155.3 | 183.1 | 193.4 |
Condenser Water Pressure drop (kPa) | 45 | 46 | 46 | 47 | 48 | 49 | 49 | 50 | 49 | 50 |
Evaporator | Shell and Tube Type |
Water Side Max Pressure (MPa) | 1 |
Dia.of Pipe to Evaporator (inch) | 3" | 3" | 4" | 5" | 5" | 5" | 5" | 5" | 6" | 6" |
Chilled Water Flow (m3/h) | 30.8 | 41.1 | 53.0 | 72.4 | 79.1 | 93.7 | 108.3 | 127.7 | 151.1 | 159.5 |
Evaporator Water Pressure drop (kPa) | 31 | 37 | 40 | 42 | 54 | 51 | 44 | 46 | 47 | 47 |
Running Noise dB(A) | 76.1 | 76.7 | 77.8 | 82 | 82.2 | 82.6 | 83.4 | 86.1 | 87.2 | 88.2 |
Total weight (kg) | 1410 | 1630 | 1940 | 2260 | 2540 | 2750 | 2930 | 3200 | 3470 | 3740 |
Running Weight(kg) | 1790 | 2210 | 2590 | 2970 | 3330 | 3650 | 3920 | 4200 | 4550 | 4830 |
Dimension L×W×H (mm) | Detailed dimensions are according to the actual finished product sizes. |
Prod Model: |
ESGW025SON~ESGW820DON |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Air Conditioner |
Cooling Type: |
Water Cooled Chiller |
Type: |
Water-Cooled |
Certification: |
CE |
Condition: |
New |
Selected Voltage: |
380~440V-3pH-50Hz |
Compressor Number: |
1 or 2 |
Application Fields: |
Air Conditioner |
We, Eurostars Group, is a modern hi-tech enterprise, specializing in air conditioning research, development, production, sales and engineering services.
The current product lines range from central air conditioning refrigeration system for commercial and industrial use to dehumidification system, including centrifugal series, scroll series and air terminal series. We manufacture products such as water/air cooled screw chiller unit, modular chiller unit, water/ground/air source heat pump unit, low temperature ambient chiller, industrial chiller, glycol chiller, condensing unit, rooftop air conditioning unit, water/air cooled heat pump packaged air conditioner, constant temperature and humidity unit, air handling unit, and fan coil unit. We strive to become the best air conditioner manufacturer that offer wide range of products and competitive price for meeting the customers' real demand.
Perfect quality depends on the professional technical support team and standardized operation flow. Eurostars owns advanced production and testing equipments, including assembly production lines for large and small units respectively, heat exchanger pipeline, large spraying pipeline, CNC processing center, CNC punching and bending machine, pipe expanding machine, automatic welder, large mational-level testing center for water cooled and air cooled chiller, national-level testing center for household cold water (heat pump) unit, etc., thus ensuring product quality and services.
