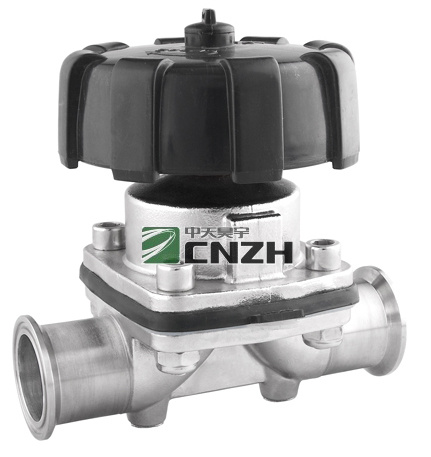

Clamped Diaphragm Valves

Clamped Diaphragm Valves
Price: Negotiable
Min Order: 1
Specification: DN10-DN150, 1/2"-6", larger size can be customized
Materials: AISI304, AISI304L, AISI316, AISI316L
Sealing ring: Silicon gel, EPDM, FPM or VITON
Surface treatment: Mirror polishing(180G, 240G, 400G), inner surface mechanical polished Ra less than 0.4 - 0.8μm, outer surface glass polished Ra less than 0.8μm.
Standard: DIN, SMS, ISO, IDF, RJT, AS, BS, BPE
Connection: Welded, threaded, clamped, flanged, union-type available
Operation: Manual (pneumatic or electric actuator available)
Application: Dairy, Water, Food, Beer, Beverage, Pharmaceutical, Cosmetic and so on.
We also supply butterfly valve, ball valve, check valve, diaphragm valve, safety valve, union parts, ferrule, end cap, nut, clamp, elbow, tee, cross, reducer, sight glass, manhole cover, cleaning ball, centrifugal pump, pipe holder etc...

Advantage: Prompt quotation, competitive price, punctual delivery and guaranteed quality.
Size(DIN)ABH
DN15107.034.088/99
DN20116.034.091/102
DN25125.050.5110/123
DN32146.050.5129/138
DN40158.050.5139/159
DN50190.064.0159/186
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNZH Group
Consist of branch factory of following:
Wenzhou Tianyu light industry machinery Co., Ltd
Jiangsu Tianyu light industry machinery Co., Ltd
Shanghai Tianyu light industry machinery Co., Ltd
Wenzhou Tianyu machinery industry Research institute
Shanghai Dipu automatic technology Co Ltd

The CNZH headquartered in WENZHOU, China, is a globally successful leading group with more than 5 companies in China which leading the food processing production line. The company focuses on mechanical engineering especially food and liquid process engineering and equipment. CNZH Group technologies are applied in the food, dairy, winery and brewery, beverage, condiments, biochemical as well as the pharmaceutical industries.

Main Industry solution service:
Dairy Engineering: Pasterilizeed milk, UHT milk, yoghurt, etc
Beverage Engineering: Vegetable, fruit juice, tea, functional beverage etc
Condiments Engineering: Ingredient of sea food, bone, vinegar etc
Pharmaceutical Engineering: Herb, injection, biochemical, pet,
Food Engineering: Cans, agricultural byproduct,
Fine Biochemical & Biological Engineering: Essence, tea polyphenols, enzyme preparations.
CNZH cooperated with most of the biggest food group and make out engineering service that obtain excellent credit and reputation.
Service:
Turnkey production line solution
Processing formula consultation and support,
Production line design,
Machine fabrication and supply,
Engineering installation,
Commissioning,
After-service maintains and support

CNZH also support special fabrication for the customers with their own design and technical support.

Customers
Mars(Dubai), DuPont, Coca-Cola, Pepsi, Robust(milk), Bosch(machine),
Yili(milk), Mengniu(milk), Guangming(milk), huiyuan(juice), Wahaha(milk), Kanshifu(machine), Huiyuan, Wahaha, Nongfu spring water, Taizhinai(milk beverage), zhejiang panda dairy(milk), etc

Advanced machines for stainless steel machine fabrication,
CNC machines processing, regulated QC control system and testing system and equipments(X-ray test gun, testing machines and examine machines etc ), ensured the product in high quality.
