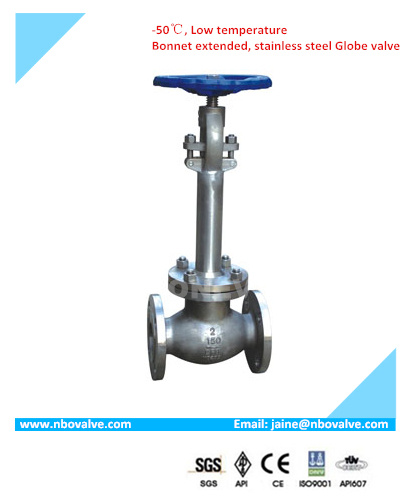

Class 300lb 2" Stainless Steel Extended Bonnet Globe Valve (-50Degc)

Class 300lb 2
Price: US $ 1350-3980/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Design Feature:

BS 1873 Cast Steel Globe Valve Conform to BS1873, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25

Construction is as follows:

- Regular Port
- Outside Screw and Yoke(OS&Y)
- Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet
- Backseat
- Solid Disc(Plug, Ball/Spherical, Throttling)
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5 and B16.47 A/B


Bellow Seal lobe Valve:

Pressure: PN 1.6mpa--PN 16 mpa
Temperature: -29 ~+350C


Pressure Sealing Globe Valve:

Pressure: Class 600--Class 2500
Size:   2"--12"



Main Part & Materials

Part NamesPart Materials
BodyWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
BonnetWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
Disc/Ball/WedgeWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
StemF6aF304F6aF304F316F304LF316LC83600/C95800
Seat/Seat Ring13%CrSS30413%CrSS304SS316SS304LSS316LC83600/C95800
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8MB8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.Sea Water etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °C-29~220 °C




Quality Test:




Our Recently Exhibitons:



Should you need the further information or queston on the valve, don't hesitate to contact us.
Prod Model: J41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Structure: Through Way Globe Valve
Sealing Form: Gland Packings Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Application: Bellows Globe Valve
Standard: JIS
Zhejiang Number One Valve Co., Ltd(ONEV) has been for 15 years in Valve manufacture, design, sales and service. The company covers an area of 18000 square meters.

The main products of ONEV are Ball valve, Gate valve, Globe valve, Check valve, Plug valve, Butterfly valve, etc., API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB. Standard.

ONEV has been accredited to CE, API, ISO 9001: 2000, international qualified certificates. Has set up the perfect quality control and guarantee system to ensure excellent quality and best service.

ONEV for years experience and service, in Chinese industry line and important projects of oil refining, gas pipelines, petroleum, electric power, pharmaceuticals etc. Meantime, our products make a broad market in more than twenty countries over the world, distributed in Europe and United States, South American, Middle East, Southeast Asia, Africa, and have enjoyed good reputation and trust. We will try our best to supply superior quality products, satisfied after-sale service and technical supports to customers.

ONEV always persist in the idea of "All for customer satisfaction" to become bigger and stronger for country valve construction. We warmly welcome all the partners come to co-operate with us and make a brilliant future.
