Class 600~2500 Pressure Seal Gate Valve

Class 600~2500 Pressure Seal Gate Valve
Price: Negotiable
Min Order: 1

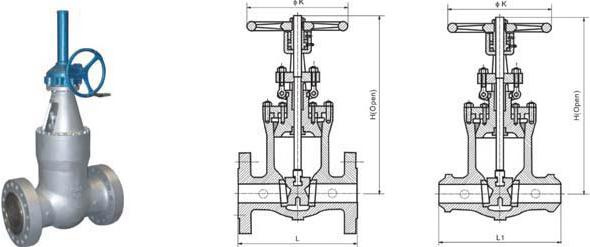

CLASS 600~2500 PRESSURE SEAL GATE VALVE
OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance

Design and Manufacture: AMSI B16.34, API600 API6D, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged cnnection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D

A. Back up ring: Absors thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
Materials List
NO.Part nameMaterial
23Grease nippleBrass
22Grub screwCarbon steel
21Hand wheel nutCarbon steel
20Hand wheelMalleable lron/cast steel/dycuke lron/fabricated steel
19Yoke nutCarbon steel/SS
18Eye bolt and nutA 193 B7/A194 2H~A193 B8/A194 8
17PinCarbon steel/stainless steel
16Stem NutA 439-D2/cu-alloy
15Gland flangeCarbon steel/equivalent to body material
14GlandStain less steel
13Gland bushSee body material
12Back seat
11Stem
10Seat ring
09Wedge



NO.Part nameWCBLCBWC6WC9
08Bolt and nutA193 Gr B7/A194 Gr 2HA320 Gr L7/A194 Gr 4A193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7
07Gland packingGraphiteGraphiteGraphiteGraphite
06GasketSoft lronSoft lronSS304SS304
05Thrust ringA105A182 F304A182 F11A182 F22
04Back up ringA105A182 F304A182 F11A182 F22
03YokeA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9
02BonnetA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9
01BodyA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9




NO.Part nameC5C12CF8CF8M
08Bolt and nutA193 Gr B7/A194 Gr 2HA193 Gr B16/A194 Gr 4/7A193 B8/A194 8A193 B8M/A194 8M
07Gland packingGraphiteGraphiteGraphiteGraphite
06GasketSS304SS304SS304SS316
05Thrust ringA182 F22A182 F22A182 F304A182 F316
04Back up ringA182 F22A182 F22A182 F304A182 F316
03YokeA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
02BonnetA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
01BodyA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Seal Surface: Wedge Gate Valve
Material: Carbon Steel
Connection Form: Outside Thread
Zhejiang Aernan Valve Co., Ltd is situated in Oubei which is named as China Valve Town, it is a systemic manufactory, including scientific research, design, production, distribution, after service. Our factory has many years experience in producing kinds of API valves, such as gate valves, ball valves, globe valves and check valves etc.

In the help of scientific technology, continuous innovation and rigorous management system, our company built a full system that integrate distribution, contract, storage, finance and efficiency of personnel so that we can guarantee the quality of production. Our aim is entering into information meshwork, trying to be the best and our long-term target is to develop new products. Our company has got the credit from most consumers as we have higher quality, lower price, more advanced technology and excellent service.

For a company, quality is the base, credit standing is the development. Therefore, we still are keeping innovating and fetching in advanced technology in the effort of the staff, and try our best to meet our clients any requests.

We welcome our clients all over the world to see about our production, and to contract with each other. We expect we could make good winning hand in hand.
