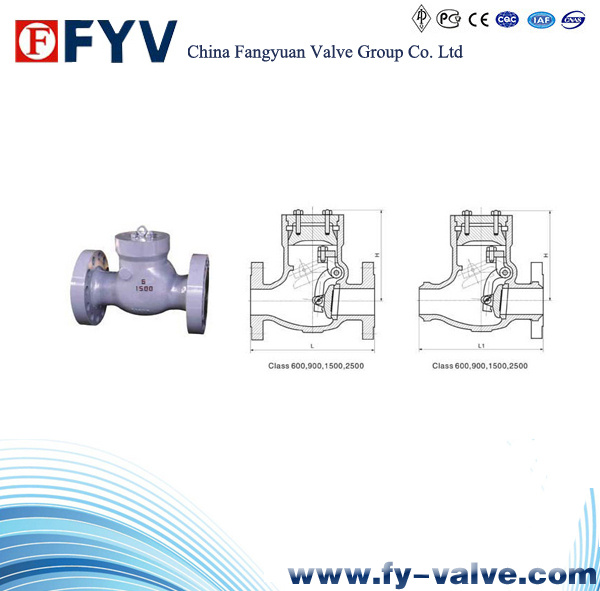

Class 600~2500 Pressure Sealing Swing Check Valve

Description

Pressure sealing cover, swing type disc
Ene: Threaded or welded seat ring
Material: ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M

Standards compliance
Design and Manufacture: ANSIB16.34, API 6D, BS1868
Face to face(end to end): ANSIB16.10, API 6D
Flanged connection: 2~~24~to ANSIB16.5
Butt welded end: ANSIB16.25
Test and inspection: API 598, API 6D
A. Back up ring: Absorbs thrust applied by internal pressure.
B. Thrust ring: Pretects the soft metallic gasket from detemation.
C. Gasket Unique angutar design provides superior sealing.

The features of check valve

Bolted Bonnet; Swing and lift disc; Metallic seating surfaces.

Body and Bonnet Connection
The body and bonnet of Class150~Class900 check valves are usually with studs and nuts. And the body and bonnet of Class1500~Class2500 check valves are usually of pressurized seal design.

Body-To-Bonnet Joint
Stainless steel + flesible graphite wounded gasket is used for Class 150 and Class 300 check valve; Stainless steel + flexible graphite wounded gasket is used for Class 600 check valve, and joint gasket is also optional for Class 600 check valve; Ring joint gasket is used for Class900 check valve; Pressurized seal design is used for Class 1500~Class 2500 check valves.

Seat
For carbon steel check valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer. Renewable threaded seat is used for NPS<10 check valves, and welded on seat can be also optional if being requested by the customer. Welded on seat is used for NPS>12 crbon steel gate valves. Forstainless steel check valve, integral seat is usually adopted, or to weld hard alloy directly integrally. Threaded or welded on seat is also optional for stainless steel check valve if being requested by the customer.

Our Advantages:
1. We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters: 110, 000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
