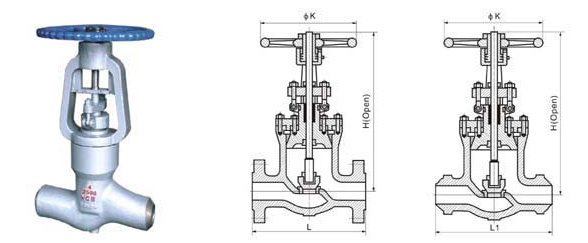

CLASS 600lb~2500lb Pressure Sealed Globe Valve
OS&Y, Rising stem, Plug Disc
Pressure sealing Bonnet, Threaded or welded seating
ASTM A216 WCB, A217 WC6, WC9, A351CF8, A351CF8M, A351 CF3, A351 CF3M, A351 CN7M etc.
Standards compliance
Design and Manufacture: ANSI B16.34, BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598.
A. Back up ring: Absorbs thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
Yongjia Hongye HIGH & Medium pressure valve Co., Ltd., which is specialized in export-oriented valve manufacturer, is located in Oubei, Wenzhou City, Zhejiang Province, the hometown of pump & valve in China.
Integrating manufacturing, sales and after-sales service together, the main products of Hongye are Ball valves, Gate valves, Globe valves, Check valves, butterfly valves, strainers, etc. Working pressure and temperature range up to DN2000(80"), PN42Mpa (Class2500) and -196 to 650 respectively, employing materials from conventional carbon steel, stainless steel, cast iron, such as graphite cast iron, grey cast iron, WCB, A105, WCC, LCB, LCC, WC6, WC9, C5, CF8, CF8M, CF3, CF3M, Inconel and Monel, etc. Our products are widely used by domestic and foreign users in pipelines of petroleum, chemical industry, metallurgy, electric power, military and engineering supporting industries.
The company has always been pursuit of the spirit of "There is no best, only better". We are going to offer excellent quality, ideal price and best service, sincerely welcome all local and foreign customers to establish long-term stable cooperative relationship with us.
