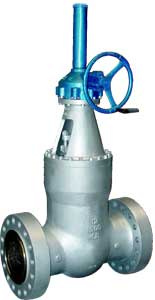

CLASS 150~1500 Pressure Seal gate valve
Power Station Valve of High Temperature and High Pressure
Class 900~2500
Size: NPS 2" ~ 22"
Basic Design: ANSI B16.34, API 600
Face to face standard: ANSI B16.10, API 6D
Ends Connection: ANSI B16.5(RF), B. W. Ends to ANSI B16.25
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M
OS&Y, Rising Stem, Flexible Solid Wedge, Welded-in or Threaded Seat Ring.
Standard Material Specifications:
NO. |
Part Name |
WCB |
WC6 |
WC9 |
C5 |
CF8 |
CF8M |
1 |
Body |
A216 WCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
2 |
Seat Ring |
A182 F6a |
A182 F22 |
A182 F22 |
A182 F5 |
A182 F304 |
A182 F316 |
3 |
Disc |
A216 WCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
4 |
Stem |
A182 F6a |
SAEHNV3 |
A182 F304 |
A182 F316 |
5 |
Stuffing Box |
A216 WCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
6 |
Seal Ring |
AISI 316L |
Flexible Graphite + 316 |
7 |
Split Ring |
Steel |
F6 |
F6 |
F6 |
F304 |
F316 |
8 |
Back Ring |
Steel |
Steel |
Steel |
Steel |
S. S. |
S. S. |
9 |
Bolt |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8 |
10 |
Nut |
A194 2H |
A194 2H |
A194 2H |
A194 2H |
A194 Gr. 8 |
A194 Gr. 8 |
11 |
Yoke |
A216 WCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
12 |
Bolt |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8 |
13 |
Nut |
A194 2H |
A194 2H |
A194 2H |
A194 2H |
A194 Gr. 8 |
A194 Gr. 8 |
14 |
Packing Plate |
AISI 410 |
AISI 410 |
AISI 410 |
AISI 410 |
AISI 304 |
AISI 316 |
15 |
Packing |
Flexible Graphite (Braided and Ring) or PTFE |
16 |
Split Pin |
Steel |
Steel |
Steel |
Steel |
Steel |
Steel |
17 |
Eyebolt |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8 |
18 |
Gland |
A182 F6 |
A182 F6 |
A182 F6 |
A182 F6 |
A182 F304 |
A182 F316 |
19 |
Gland Flange |
A105 |
A105 |
A105 |
A105 |
A182 F304 |
A182 F316 |
20 |
Nut |
A194 2H |
A194 2H |
A194 2H |
A194 2H |
A194 Gr. 8 |
A194 Gr. 8 |
21 |
Stud |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
A193 B7 |
22 |
Stem Nut |
Ni-resist A439-D2 |
23 |
Gear Box |
Pu, rchased |
24 |
Protector |
Steel |
25 |
Nameplate |
AISI 304 |
26 |
Rivet |
AISI 304 |
Other materials are available on request
Test Pressure to API 598
Class |
Shell Test (Hydrostatic) |
Seat Test (Hydrostatic) |
Seat Test (Air) |
900 |
3350psi |
2442psi |
80psi |
1500 |
5626psi |
4078psi |
80psi |
2500 |
9275psi |
6787psi |
80psi |
Dimensions(mm) and Weights(Kg)
NPS |
Class |
2 |
2-1/2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
DN |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
L(RF) |
900LB |
368 |
419 |
381 |
457 |
610 |
737 |
838 |
965 |
1029 |
1130 |
|
|
|
1500LB |
368 |
419 |
470 |
546 |
705 |
832 |
991 |
1130 |
1257 |
1384 |
|
|
|
2500LB |
451 |
508 |
578 |
673 |
917 |
1022 |
1270 |
|
|
|
|
|
|
L1(BW) |
900LB |
216 |
254 |
305 |
355 |
508 |
660 |
787 |
914 |
991 |
1092 |
|
|
|
1500LB |
216 |
254 |
305 |
406 |
559 |
711 |
864 |
991 |
1067 |
1194 |
1346 |
1473 |
1600 |
2500LB |
279 |
330 |
368 |
457 |
610 |
762 |
914 |
1041 |
1118 |
1245 |
1397 |
|
|
L2(RTJ) |
900LB |
371 |
422 |
384 |
460 |
613 |
740 |
841 |
968 |
1038 |
1140 |
|
|
|
1500LB |
371 |
422 |
473 |
549 |
711 |
841 |
1000 |
1146 |
1276 |
1407 |
|
|
|
2500LB |
454 |
514 |
584 |
683 |
927 |
1038 |
1292 |
|
|
|
|
|
|
H(Open) |
900LB |
554 |
637 |
680 |
796 |
1084 |
1372 |
1494 |
1550 |
1960 |
2210 |
|
|
|
1500LB |
554 |
637 |
767 |
875 |
1094 |
1372 |
1655 |
1843 |
2150 |
2260 |
2460 |
2721 |
2940 |
2500LB |
610 |
654 |
753 |
850 |
1254 |
1374 |
1685 |
1894 |
2226 |
2382 |
2585 |
|
|
W |
900LB |
300 |
350 |
350 |
400 |
560 |
460* |
610* |
610* |
610* |
760* |
|
|
|
1500LB |
300 |
450 |
450 |
560 |
305* |
460* |
610* |
610* |
760* |
760* |
|
|
|
2500LB |
500 |
500 |
600 |
600 |
460* |
460* |
610* |
|
|
|
|
|
|
Weight |
RF |
900LB |
50 |
84 |
92 |
154 |
341 |
622 |
950 |
1295 |
1720 |
2380 |
|
|
|
1500LB |
60 |
91 |
128 |
182 |
394 |
795 |
1370 |
2120 |
2800 |
3870 |
|
|
|
2500LB |
121 |
175 |
195 |
229 |
720 |
1295 |
2250 |
|
|
|
|
|
|
BW |
900LB |
39 |
64 |
82 |
120 |
266 |
524 |
760 |
1090 |
1450 |
2018 |
|
|
|
1500LB |
46 |
71 |
85 |
130 |
292 |
587 |
974 |
1615 |
2010 |
2815 |
3315 |
4150 |
5219 |
2500LB |
88 |
135 |
144 |
158 |
500 |
892 |
1550 |
1978 |
2580 |
3780 |
5988 |
|
|
