Closed Spring Loaded Low Lift Type High Pressure Safety Valve (A41Y-320)

Closed Spring Loaded Low Lift Type High Pressure Safety Valve (A41Y-320)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

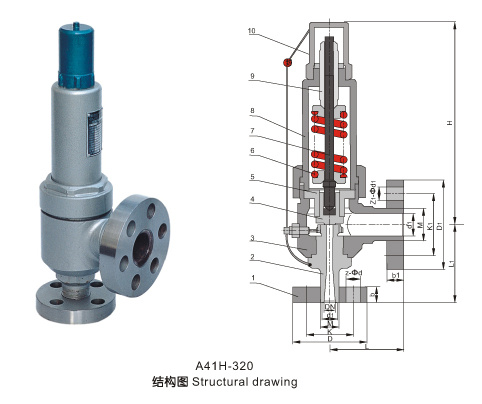

Closed spring loaded low lift type high pressure safety valve
NO. Name of part A41Y-160
A41Y-320     Materials
A41Y-160P    A41Y-320P     Materials A41Y-160R    A41Y-320R Materials
1    Flange 35/35CrMoA 2Cr13 1Cr18Ni9Ti
2    Nozzle 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
3 Body 35/40 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
4   Disc 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
5 Guide sleeve 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
6   Spring 50CrVA 50CrVA   Coated Teflon 50CrVA   Coated Teflon
7    Stem 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
8 Bonnet ZG230-450 1Cr18Ni9Ti 1Cr18Ni9Ti
9 Adjusting bolt 45 2Cr13 2Cr13
10   Cap ZG200-400 1Cr18Ni9Ti 1Cr18Ni9Ti

Prod Model: A41Y-320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Spring Type
