Overview:

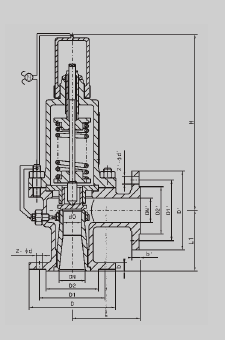

A41H type are used for the equipment and pipeline of the petroleum gas, air, water and other medium what the working temperature are less than 300ºC. Flange connecting dimensions of comply with Standard series first of JB/T....94.It is a kind of ultimate protection device for overpressure applied in the pipes and container with the non-toxic, harmless and non-inflammable, non-explosive liquid. The safety valve adopts the spring direct load type, the flange connection and the whole enclosed structure.
Characteristic
1 Smaller displacement, save energy.
2 The valve disc and seat with planar structure are easy to repair and re - processing.
3 The setting pressure deviation is small, can reach 3%.
4 Choose the high-quality spring steel, ensure the life and stability of the spring.Execution standard
Design specification: GB/T 12243
Face to face: GB/T 12221
Flange connection: JB/T 79
Test and inspection: GB/T 12242
Product ID: GB/T 12220
Materials for main parts:
1 Body: WCB
2 Seat: ZG2Cr13/1Cr18Ni9Ti
3 Adjusting ring: ZG2Cr13/1Cr18Ni9Ti
4 Disc: 2Cr13/1Cr18Ni9Ti
5 Guide sleeve: ZG2Cr13/1Cr18Ni9Ti
6 Bonnet: ZG230-450
7 Spring: 50CrVA
8 Stem: 2Cr13
9 Adjusting bolt: 45
10 Cap: ZG200-400
