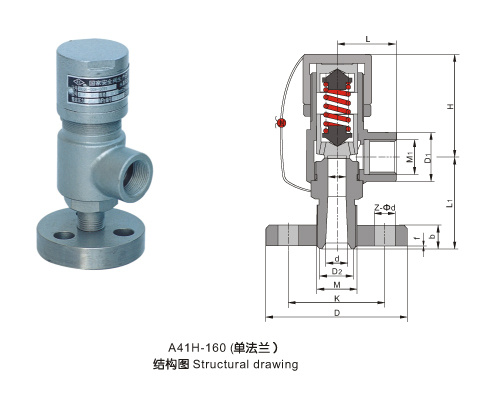

Closed Spring Loaded Low Lift Type Safety Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Closed spring loaded low lift type high pressure safety valve
|
NO. |
Name of part |
A41Y-160
A41Y-320 Materials |
A41Y-160P A41Y-320P Materials |
A41Y-160R A41Y-320R Materials |
|
1 |
Flange |
35/35CrMoA |
2Cr13 |
1Cr18Ni9Ti |
|
2 |
Nozzle |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
3 |
Body |
35/40 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
4 |
Disc |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
5 |
Guide sleeve |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
6 |
Spring |
50CrVA |
50CrVA Coated Teflon |
50CrVA Coated Teflon |
|
7 |
Stem |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
8 |
Bonnet |
ZG230-450 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
9 |
Adjusting bolt |
45 |
2Cr13 |
2Cr13 |
|
10 |
Cap |
ZG200-400 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
Seali ngs urfaceo f seat andd isc |
|
Co Depositing stellite |
|
Type |
(DN) |
do |
d |
M |
D |
K |
Z- d |
b |
d 1 |
M 1 |
D 1 |
k 1 |
Z 1 - d 1 |
b 1 |
L |
L 1 |
H |
A41Y-160
( |
15 |
8 |
20 |
M24 2 |
95 |
60 |
3-18 |
20 |
/ |
M33 2 |
36 |
/ |
/ |
/ |
50 |
80 |
85 |
|
20 |
10 |
25 |
M27 2 |
95 |
60 |
3-18 |
20 |
/ |
M33 2 |
48 |
/ |
/ |
/ |
50 |
80 |
85 |
|
25 |
12 |
28 |
M33 2 |
105 |
68 |
3-18 |
20 |
/ |
M33 2 |
48 |
/ |
/ |
/ |
50 |
80 |
85 |
|
A41Y-160 |
10 |
8 |
18 |
M24 2 |
95 |
60 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
15 |
8 |
20 |
M24 2 |
95 |
60 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
20 |
10 |
27 |
M33 2 |
105 |
68 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
25 |
12 |
28 |
M33 2 |
105 |
68 |
3-18 |
20 |
50 |
M64 3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
32 |
12.14.16 |
37 |
M42 2 |
115 |
80 |
4-18 |
22 |
50 |
M64 3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
40 |
20 |
47 |
M52 2 |
165 |
115 |
6-26 |
28 |
65 |
M80 3 |
200 |
145 |
6-29 |
40 |
165 |
165 |
350 |
|
50 |
25 |
58 |
M64 3 |
165 |
115 |
6-26 |
32 |
80 |
M100 3 |
225 |
170 |
6-33 |
80 |
165 |
165 |
380 |
|
A41Y-320 |
10 |
8 |
18 |
M24 2 |
95 |
60 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
15 |
8 |
27 |
M33 2 |
105 |
68 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
20 |
10 |
30 |
M36 2 |
110 |
75 |
3-18 |
20 |
29 |
M42 2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
25 |
12 |
35 |
M42 2 |
115 |
80 |
4-18 |
22 |
50 |
M64 3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
32 |
12.14.16 |
41 |
M48 2 |
135 |
95 |
4-22 |
25 |
50 |
M64 3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
40 |
20 |
58 |
M64 3 |
165 |
115 |
6-26 |
32 |
65 |
M80 3 |
200 |
145 |
6-29 |
40 |
165 |
115 |
350 |
|
50 |
25 |
70 |
M80 3 |
200 |
145 |
6-29 |
40 |
80 |
M100 3 |
225 |
170 |
6-33 |
50 |
165 |
165 |
380 |
| Prod Model: |
A41Y-160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Type |
