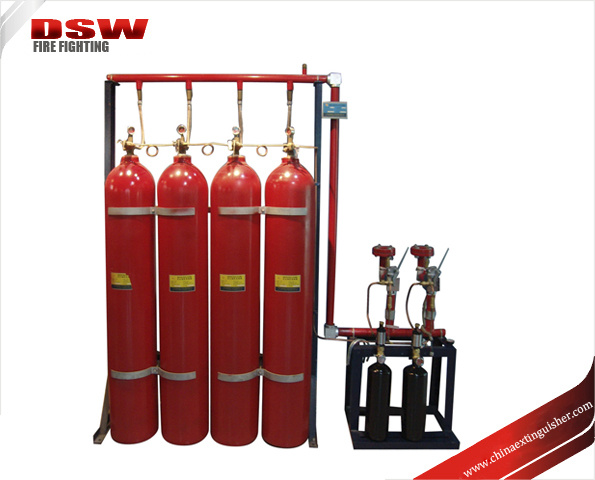

Co2s-40L Fire Suppression CO2 System
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T |
CO2S-40L Kitchen Fire Suppression SystemsCarbon dioxide is a non-conductive, inert, low toxicity, no pollution and good fire extinguishing agent, and a wide range of sources, easy production, low price. Carbon dioxide fire extinguisher is mainly suffocation, and a small amount of cooling effect. Widely used in power plants, power plant, rolling mill, printing machines, dipping tank, paint, pharmaceutical and prone to fire the important parts of fire protection, as well as computer rooms, libraries, archives, library, telecommunications centers treasures.DSW type carbon dioxide fire extinguishing system is mainly composed of: gas fire extinguishing system, fire detection system, fire extinguishing agent storage bottle, container valve, valve, check valve, pneumatic control valve, pressure switch, a nozzle, a pipeline is composed of main equipment. Can form a unit independent system or a combination of various forms of distribution system. The implementation of single or multiple zone fire protection.The system has automatic fire, emergency manual fire extinguishing, on-site mechanical cast fire and by the bottle opening fire in four ways for users to choose.This system through the national fixed fire extinguishing systems and fire-resistant building components for quality supervision and inspection center detection of qualified, in line with GB GB166691996 " carbon dioxide fire extinguishing systems and components - General technical conditions ".Carbon dioxide gas fire extinguishing system is known for gas extinguishing system can only partially protected by a special fire extinguishing method. ![]()
Carbon dioxide gas fire extinguishing system is known for gas extinguishing system can only partially protected by a special fire extinguishing method.The product model 40L Group 70L GroupNominal working pressure ( MPa ) 5.17 5.17Injection time ( s ) ≤ 60 ≤ 60Filling volume 22.5 45 Kg/ bottlesStorage container volume ( L ) 40 70Operating temperature range from 0 c to 49 C of 0 c ~ 4CNozzle nominal working pressure ( MPa ) ≥ 1.4 ≥ 1.4Storage device for leak detection limits of 10% 10%Nozzle protection height ( m ) 0.3 - 6.5 0.3 - 6.5System start automatically, manually, emergency operationSystem extinguishing technology full submerged, partially submergedSystem start power supply 24V, 1A 24V, 1ACollecting pipe pressure safety relief device action ( MPa ) 15 ± 0.75 15 ± 0.75Storage container safety relief device operating pressure ( MPa ) 7 ± 0.35 and 7± 0.35System delay start time ( s ) ≤ 30 ≤ 3System main components are: Gas cylinders, the container valve, one-way valve, valve, driving device, collecting pipe, metal hose, nozzle, pressure feedback device, control panel, system piping accessories, fire extinguishing agent conveying pipeline and a gas bottle bracket attachment.
![]()
![]()
| Prod Model: |
CO2S-40L FIRE SUPPRESSION CO2 SYSTEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Working Pressure ( Mpa ): |
5.17 |
| Injection Time ( S ): |
Less Than 60 |
| Filling Volume: |
22.5 45 Kg/ Bottles |
| Storage Container Volume ( L ): |
40 |
| Operating Temperature Range: |
From 0 C to 49 C of 0 C ~ 4c |
| Nozzle Nominal Working Pressure ( Mpa ): |
More Than 1.4 |
| Storage Device For Leak Detection Limits: |
10persent |
| Nozzle Protection Height ( M ): |
0.3 - 6.5 |
Ningbo DSW International Co., Ltd. Established 1998, specialising in producing fire extinguishers, ABC dry powder fire extinguisher, ABC dry chemical fire extinguisher, CO2 fire extinguisher, sprinklers systems, fire hoses, fire hydrant& hose fitting brass die casting.
DSW always keep quality, service and cost as core, it has passed ISO9001 International Quality system and European CE Quality system as well as the test of Union EN-3. In order to ensure hight quality of products, every piece fire extinguishers and accessories pass 15 step test, before every shipment, sending Test report and loading pictures to our customers.
Through the efforts of both Domestic and International sales forces, DSW has emerged as the premier name for fire protection products. 80% of DSW products has been exported to different countries and regions, such as South America, Europe, Asian, Middle East etc.
