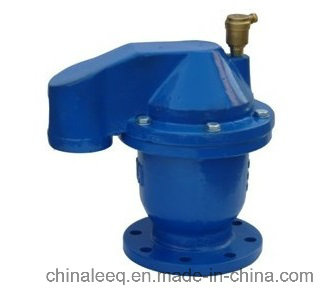

Combination Ductile Iron Air Valve

Price:	US $ 45/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Xingtai City Liqian Import&Export Co., Ltd.

Showroom Product Company Profile

Brief introduction:
The air release component is designed to automatically release small pockets of air to the atmosphere as they accumulate along a pipeline or piping system when it is full and operating under pressure. The air & vacuum component is designed to automatically discharge or admit large volumes of air during the filling or draining of piping system. This valve will open to relieve negative pressures whenever water column separation occurs.
Main part & material

	Item Name of parts	Material
1	Body	Ductile Iron
2	Seal Ring	EPDM
3	Floating Ball	Stainless Steel 304

Technical Specification
-Nominal diameter: DN50~200mm
-Applicable Temperature: : ≤80ºC
-Nominal pressure: PN0.6MPa, PN1.0MPa, PN1.6MPa
-Flange dimension: GB/T 17241.6-1998, GB/T 9113.1-2000
-Test: GB/T 13927, API598

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn50~200mm
