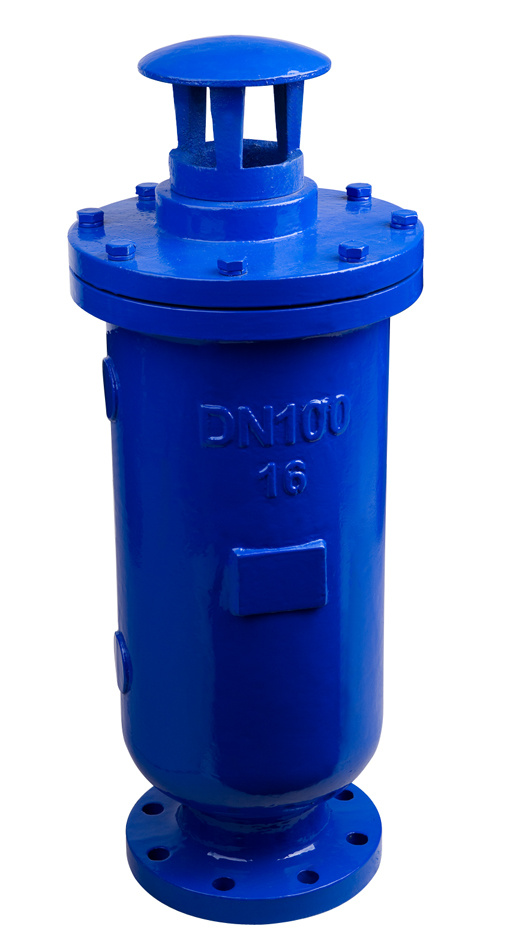

Composite Exghaust Valve
| Price: |
US $ 157/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product description
The product in installed on the culminating piont of the pipe or where is gas check, throught eliminate the air in the pipe to dredge mediate, and make sure it can work regulally, if did not install exghaust valve, the flow liquid in the pipe produce dynamo and arouse gas, form short out, lead to the effluent capacity of pipe can not be reach the requst, second, when the pipe turn round, the pipe appear power cut phenomenent, it will has negative pressure will appear in the stop pump pipe, then the pipe is shacking or break, the exghaust suction the air into the pipe quickly, avoid the pipe shaked or bread.
Quality and inspection:
Regular check on production line at each working procedure, and one special inspector inspecting the goods in random during the period time of production. Regular performance check on finished goods
Production step:
1. Purchasing the material and forged the semi-products
2. Processing the semi-products in works shop
3. Assembling the goods
4. Testing the sealing in pressure and checking quality of the goods
5. Package
6. Delivery the goods on time
Pakage
1. The pakage standard: Inside PVC bag and small box and standard export carton
2. If you have any special requirements pakage, we can pakage as per your artworks.
Primary Competitive Advantages:
1) We're professional, with several years experience in producing kinds of brass valves and brass fittings.
2) Products are of good quality, with reasonable prices.
3)Our style: Promise must be kept and action must be prompt and fruitful.
Our business idea: All for customers and everything from innovation
|
DN |
D |
D1 |
D2 |
H |
Z-Φd |
|
50 |
160 |
125 |
205 |
495 |
4-18 |
|
80 |
195 |
160 |
270 |
600 |
4-18 |
|
100 |
215 |
180 |
285 |
460 |
8-18 |
|
150 |
280 |
240 |
340 |
860 |
8-22 |
|
200 |
335 |
395 |
400 |
1010 |
8-22 |
|
250 |
390 |
350 |
465 |
1210 |
12-22 |
| Prod Model: |
SCAR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn125--350dn |
Welcome to China Huhang valve group!
Huhang valve group is located in Jinshan district in Shanghai of China, which is a specialized in manufacturing and distribution for valves.
Since its establish in 2001, Huhang has success in built production base in Tianjin and Fujian. Now, Huhang is developing "Garden style production base of valve ", the construction area reach up to 200000 square meters.
HUHANG VALVE is a specialized manufacturer of industrial steel valve according to API, ASME, EN, ISO, JIS, DIN, BS, GOST & GB standards. The product includes ball, gate, check, globe, plug, butterfly, safety, oil field and other special valves that are applied broadly in petroleum, chemical, metallurgical and power generation industries. As the reliable supplier on quality and service, HUHANG VALVE won great reputations from the customers in Europe, America, Japan, Middle East, South East Asia, Russia and other countries.
HUHANG VALVE launched its quality management and safety system as ISO 9001, API 6D, API 607, CE/PED approvals for the products.
The main tech-data of product listed as below, where any special requirement can be handled by our dedicated engineering team for various working conditions.
Product range: Ball, gate, check, globe, plug, butterfly, safety, oil field and other special valves. Among 35% and 30% in total output by ball valve and gate valve respectively. Metal seated ball valve, bellow sealed valve and wafer check valve are the featured products.
Pressure range: Class150~Class2500, PN10~PN420;
Size range: NPS1/2~NPS80;
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, hydraulic-pneumatic etc.
Connection End: Flanged, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, etc.
Materials (forging): A105, LF1, LF2, F304, F304L, F316, F316L, F11, F22, F6, F51, F316H, F321, F347, etc.
Huhang VALVE is dedicated to supplying high quality valve solutions ifor global industries since its inception in 2001. In the new century, Huhang is facing a historical development opportunity and furious competition. By holding the persistence improving in management and product quality, HUHANG will provide higher and better service to you.
