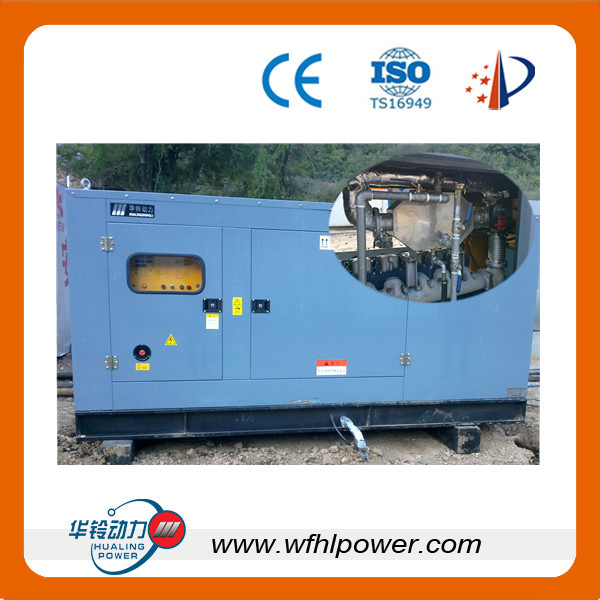

Congeneration Generator (CG)

Congeneration Generator (CG)
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Scope of supply (Standard scope )
Gas engine
Air filter
Gas mixer
Throttle valve
Ignition system
Starting batteries
Synchronous generator
Automatic cos control

Automatic voltage control
3. Heat recovery system
Plate heat exchanger
Exhaust gas boiler
Cooling water pump
Heating water pump

Three way valve with servo drive/temperature heating water regulation
Safety valve/ heating water circuit Safety valve/ cooling water circuit Expansion tank/cooling water circuit
Gas train
Gas filter
Solenoid valve
Zero pressure regulator
Pressure switch for gas /low pressure indication
5. Exhaust system
Exhaust gas silencer
Compensator

6. Electrical switchboard
Control and power part (control system, circuit breaker, power switches and measuring units)
Modular control system
Power part (circuit breaker, power switches)
Container
Steel welded transportable container with internal noise elimination for outdoor location
Air change by electrical ventilator with change speed to ensure required temperature

Lockable door for easy access to cogeneration unit
Indoor lighting
Separate room for electrical switchboard
Options
Back-up cooling system
Dry cooler / emergency cooling
Three way valve /control engine water temperature
9. Oil equipment
Central lube oil tank
Oil level regulator Preheater of the engine
Engine  type    HL6126NG-ZAL
Norminal  speed      1500  MIN  -1
Number  of  cylinder                                                                        6
Bore  *    Stroke                                                                                                  126*130
Displacement                                                                                          10  (l)
Oil  recommended  (natural  gas)                                                                    0.22  m3/kw@ h
Lube  oil  filling  quantity                                                                              min.   19  l,   max.   22  l
Max.   lube  oil  consumption                                                                        0, 4-0, 6  g/kWh
Compression  ratio                                                                                          11.5: 1
Engine  weight  (dry)                                                          800  kg

Generator
Synchronous  alternator                                                                                        Marthon  MP-100-4
Nominal  apparent  power                                                                                    125    kVA
Nominal  active  power                                                                                        100    kW
Nominal  voltage                                                                                      400/231  VAC,   50  Hz
Harmonic  distortion  (no  load/  linear  balanced  load < 1.8%  /  <   5%
Dir.   axis  transient  (X′ d)                                                                                      11, 0%
Dir.   axis  subtransient  (X" d)    6, 6%
Quad.   axis  subtransient  (X" q)    7, 2%
Transient  time  constant  (T′ d)          100  ms    100  ms
Sub-transtime  constant  (T" d)                                                                                  10  ms
Generator  weight                                                                                                515  kg
Bearing  number                                                                                                      1
Prod Model: CG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Biogas
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
