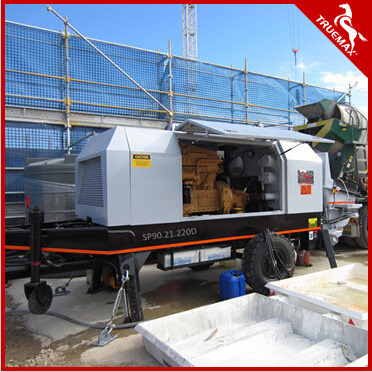

Construction Diesel Engine Concrete Pump (SP90.21.220D)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
* The high quality hydraulic components and valves use German REXROTH
* Hydraulic support stands make easily positioning.
* Powerful machine adopts DEUTZ diesel engine, the Drive power reaches to 250 Horse power.
* Tungsten steel eyes shape sheet and cutting ring guarantee the long using life.
* The valve for switching high pressure to lower pressure is designed to be easily control, which can
adjust the condition of the pump easily in accordance with the requirement of job site.
* Piston can run back to washing tank, which can easily change and be convenient for maintenance.
* Remote control is available as per customers equipment.Model | Unit | SP90.21.220D |
Whole performance of pump | Max.concrete conveying capacity per hour(low/high) | Cubic meter | 85/52 |
Max.concrete pumping pressure (High/low) | Mpa | 20.5/12.5 |
Main oil pump | / | Rexroth |
Distributing valve form | / | S-tube valve |
Main oil cylinder size (diameter ×stroke) | mm | Φ160×1800 |
Concrete cylinder size (diameter ×stroke) | mm | Φ200×1800 |
Concrete hopper (volume ×charging) | L ×mm | 700×1350 |
Power system | Engine | / | Shangchai |
Power | kW | 220 |
Rated speed | r/min | 2200 |
Hydraulic oil way from | / | Open circuit |
Other data | Cooling way for hydraulic oil | / | Air cooling |
Overall dimension | mm | 6470×2145×2390 |
Total weight | Kg | 7500 |
Prod Model: |
SP90.21.220D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Distributing Valve Form: |
S-Tube Valve |
Main Oil Pump: |
Rexroth |
