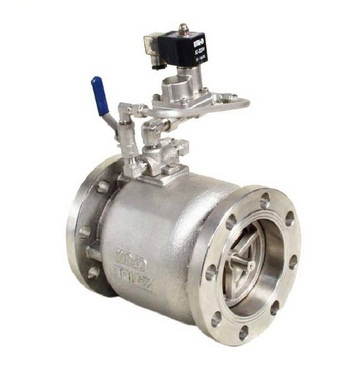

Control Valve or Multi Function Pressure/Industrial Valve

1. Working Voltage: AC110V,220V 50 / 60Hz  DC12V, DC24V

2. Allowable Voltage Range:±10%

3. Applied Temperature:-5 ~ 80°C

4. Durability:500,000Cycles

5. Applied Pressure Range: 0.3kgf/cm2 ~10kgf/cm2

6. Generally NC type (open when switch on), special order is  needed for NO type (close when  switch off).

Product accent

control valve is a kind of isolation valve, which can substitute traditional gate
valves, ball valves and butterfly valves.  The gate functioning is easily controlled by
electrical power.  The valve can be installed in fire control facility, water supply, or distant
location where it's difficult to control the gate opening.  The controller is directly fixed and
can be easily installed on piping site. Interchangeable between manual and solenoid
control.


Attention

1. The working pressure should be greater than 0.3 kgf/cm2, please check the pressure
    before installation.  Please remove impurities or metal dusts inside the pipe thoroughly.
    If possible, please add filter to prevent pipe blocking.

2. Avoid upside-down installation under insufficient flow. (Valve's inlet should face up)


Flange type

size(PT)	L	A	Weight	CV
2"	190	190	10kg	75
2.5"	210	195	13kg	105
3"	225	210	16kg	140
4"	250	222	22kg	260
6"	310	260	42kg	550
8"	420	300	85kg	1000
10"	470	335	150kg	1600
12"	530	370	200kg	2200

 Thread type

size(PT)	L	A	Weight	CV
1.5"	120	170	3.5kg	48
2"	200	190	8kg	75
