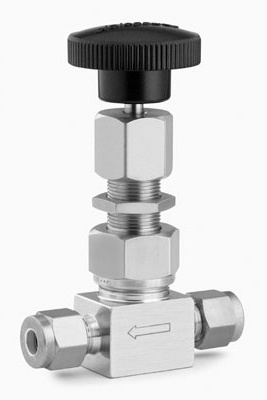

High-Pressure Valves (TX Series)
Flow coefficient of 0.04; Orifice of 0.062 in. (1.6 mm)
316 SS bar stock body
Straight and angle patterns
Metal-to-metal shutoff
2° Stem taper (included angle)
Panel mounting
Round phenolic handle
KEWE® Tube fitting and female NPT end connections
Pressure-Temperature Ratings
Ratings based on optional Grafoil® Packing. Ratings limited to 450º F (232º C) at 3435 psig (236 bar) withstandard PTFE packing.
ASME Class 2080
Material Group 2.2
Material Name 316 SS
Temperature, º F º C)Working Pressure, psig (bar)
-65 -53) to 100 (37)5000 (344)
200 (93) 4295 (295)
300 (148)3875 (266)
400 (204)3560 (245)
450 (232)3435 (236)
500 (260)3310 (228)
600 (315)3130 (215)
650 (343)3080 (212)
700 (371)3000 (206)
750 (398)2930 (201)
800 (426)2880 (198)
850 (454)2815 (193)
Specification Summary
Body Material 316 Stainless Steel
Connection 1 Size 1/4 in., 6mm
Connection 1 Type KEWE® Tube Fitting
Connection 2 Size 1/4 in., 6mm
Connection 2 Type KEWE® Tube Fitting
Safe Product Selection: The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Caution: Do not mix or interchange valve components with those of other manufacturers.
