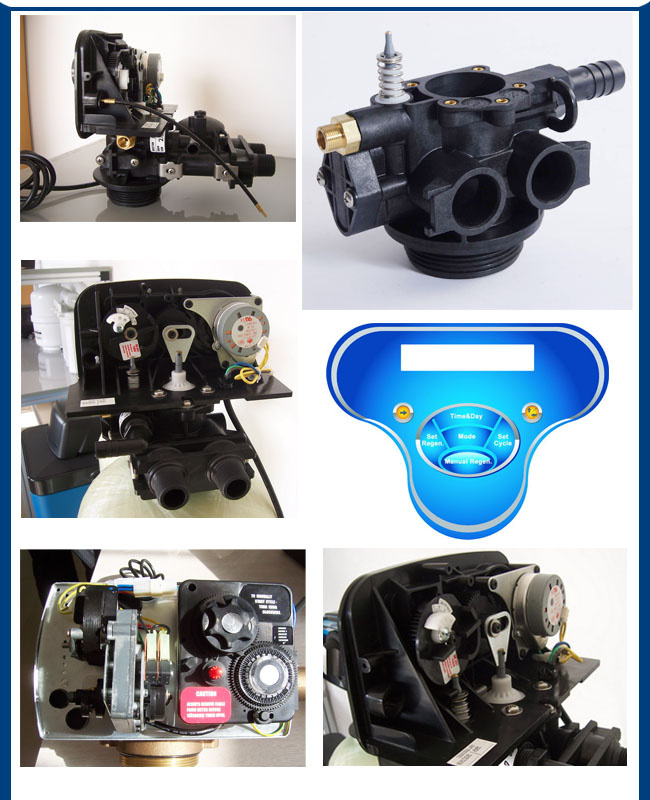

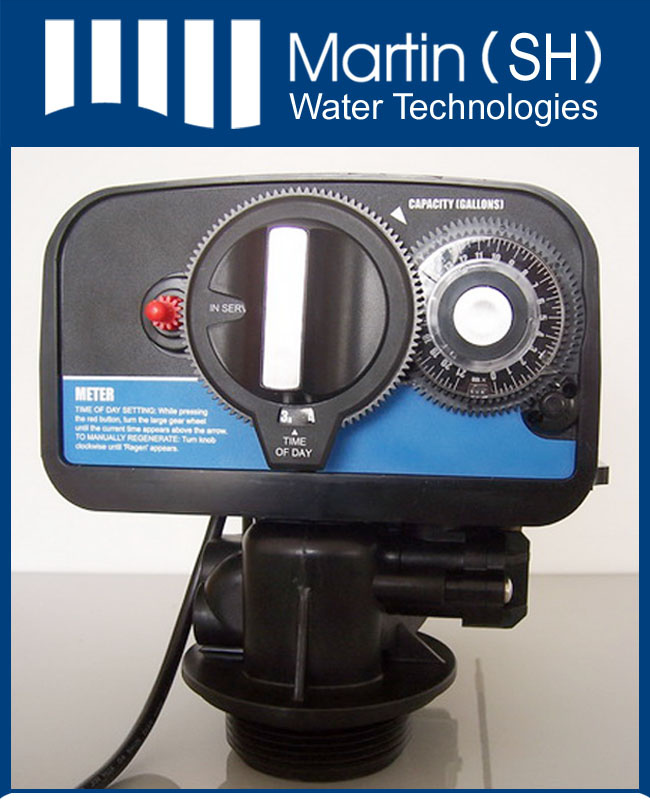

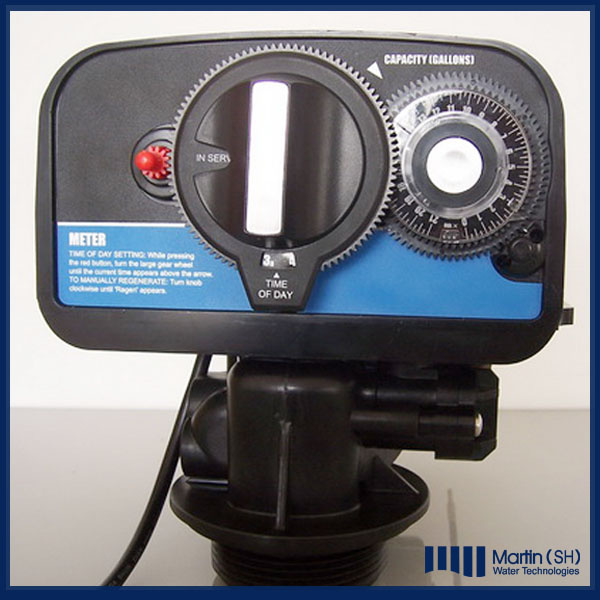

Products Name:control water valve with timer1)Timers that control the cycles, Simple to set and easy to service
2)Glass fiber reinforced Noryl plastic valve body on C, E, F11 series, Lead Free bronze Valve body on F21 series, Designed to ensure consistent and maximized water flow
3)Excellent gliding characteristics -piston is coated with teflon provides excellent friction -reduces and gliding characteristics
4)Hydraulically balanced -piston-seal -spacer forms a hydraulic chamber that makes water pressure to disperse equally around the piston
5)Self cleaning -piston with teflon coating prevents stickiness, full stroke against the seals wipes the piston clean
6)Injector module containing brine valve, flow controls and injector are removable from valve's exterior
7)Regulates drain line flow, brine ling flow and brine draw
8)Meter supply the most efficient method of monitoring water usage and initiating timely
9)Accurately measure water flow at the service outlet
|
Series |
MT-F11, MT-E, MT-C, MT-R Series |
MT-H Series |
MT-G, MT-GM, MT-D Series |
|
Flow Rate(50PSI/3.5bar) Valve Alone |
|
Continuous (15PSI/1bar drop) |
20GPM/76LPM |
14GPM/53LPM |
20GPM/76LPM |
|
Peak (25PSI/1.7bar drop) |
26GPM/98LPM |
18GPM/68LPM |
26GPM/98LPM |
|
Max. Backwash (25PSI/1.7bar drop) |
7GPM/26LPM |
7GPM/29LPM |
17GPM/64LPM |
|
CV(1PSI/0.07bar drop) |
5.0 |
3.6 |
5.0 |
|
Flow Rate(50PSI/3.5bar) Softener(15PSI/1bar Drop) |
|
8×44 0.75CF/21L resin |
9.6GPM/36.5LPM |
9.2GPM/35LPM |
9.6GPM/36.5LPM |
|
9×48 1.0CF/29L resin |
11.5GPM/43.5LPM |
10GPM/38LPM |
11.5GPM/43.5LPM |
|
10×54 1.5CF/43L resin |
11.8GPM/44.5LPM |
10.2GPM/38.6LPM |
11.8GPM/44.5LPM |
|
12×48 2.0CF/57L resin |
12.8GPM/48.5LPM |
N/A |
12.8GPM/48.5LPM |
|
14×65 3.0CF/85L resin |
N/A |
N/A |
14.5GPM/55LPM |
|
16×65 4.0CF/113L resin |
N/A |
N/A |
15GPM/57LPM |
|
Regeneration |
|
Downflow/Upflow |
Downflow |
Downflow |
Both |
|
Cycles |
7 |
5 |
5 |
|
Adjustable cycles |
Brine |
Brine |
All |
|
Time available |
180Minutes |
180Minutes |
Up to 999 Minutes per cycle |
|
Flow Meter |
|
Accuracy |
0.25-15GPM/0.95-57LPM±5% |
N/A |
0.25-15GPM/0.95-57LPM±5% |
|
Capacity Range |
Standard 125-2100Gallon/0.5-8m3 |
N/A |
1-99,999 |
|
Extended 625-10800Gallon/2.4-40m3 |
|
Mounting& Shipping |
|
Inlet/Outlet |
1" or 3/4", NPTor BSP |
3/4" BSP |
1" or 3/4", NPTor BSP |
|
Base |
2-1/2"-8 UN |
2-1/2"-8 NPSM |
2-1/2"-8 NPSM |
|
Distributor pilot |
1.05" OD |
1.05" OD |
1.05" OD |
|
Drain Line |
1/2" ID |
1/2" ID |
1/2" ID |
|
Braine Line |
3/8" OD |
3/8" OD |
3/8" OD or 3/4" OD |
|
Height from top of tank |
7"/178mm |
7.9"/200mm |
7.9"/200mm |
|
Weight(single valve gross) |
Timer 2.3KG/Meter 2.5KG |
Timer 5.2KG |
2.3KG |
|
Working |
|
Electrical rating |
220V,110V,24V-50Hz,60Hz |
220V,110V,24V-50Hz,60Hz |
220V,110V,24V-50Hz,60Hz |
|
Max. VA |
3VA |
3VA |
3VA |
|
Pressure |
Hydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar |
Hydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar |
Hydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar |
|
Temperature |
1-43 C/34-110F |
1-80 C/34-175F |
1-43C/34-110F |
