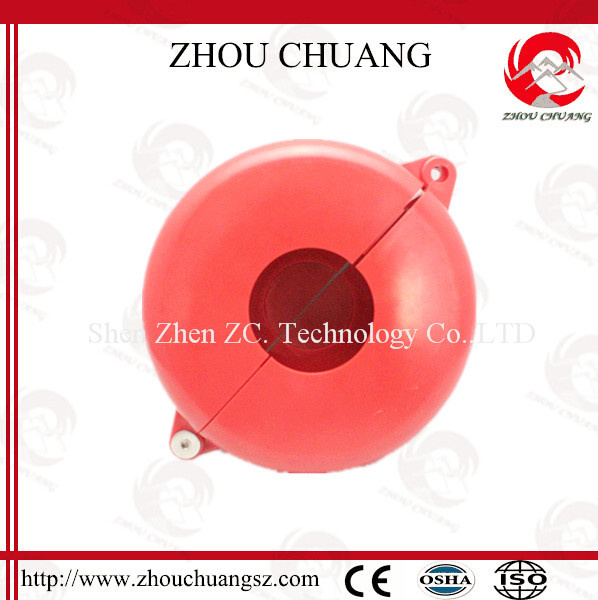

GATE VALVE LOCKOUT
Made from durable polypropylene for superior impact and chemical resistance.
Place over the gate valve between the two parts and put your lockout padlock.
Available in 5 sizes and all colors.
Gate Valve Lockout
1.Simple and easy to use
2.Made of tough & durable polypropylene
3.Resists most chemicals, temperature
Manufactured from tough lightweight dielectric Xenoy thermoplastic these rotational valve covers can withstand extreme conditions, temperature range -46ºC. to 177ºC.
1.Outward/Inward rotation allows for easier installation & storage
2.Surrounds the valve handwheel to protect against accidental operation
3.5 sizes available, each size nests within the next larger size for easy storage
4.Supplied with "Do Not Operate" warning message.
Five different sizes available.
We manufacture and Export GATE VALVE LOCKOUTS
Made of special grade pvc compound for long lasting in exposed environment.
They can be made and supplied in DIFFERENT COLOURS against request and on
minimum quantity bases.
For red colour : No condition of any minimum quantity is applicable. You are free to
place order for 1 no. to 10,000 pieces or above.
We can customize the label with your company name / Model number and packing
can be done as per your specifications.
Part Code |
Description |
Weight |
Package |
ZC-F11 |
Suitable for 1"--2 1/2" valve rod |
76g |
6 pcs/box |
ZC-F12 |
Suitable for 2 1/2"--5" valve rod |
230g |
3 pcs/box |
ZC-F13 |
Suitable for 5"--6 1/2" valve rod |
368g |
3 pcs/box |
ZC-F14 |
Suitable for 6 1/2"--10" valve rod |
843g |
1 pcs/box |
ZC-F15 |
Suitable for 10"--13" valve rod |
1340g |
1 pcs/box |
Related Safety Valve Lockout :
ZC-F01 | Small lockout locks out pipes from 13mm to 64mm in diameter |
| ZC-F02 | Large lockout locks out pipes from 50mm to 200mm in diameter |
| ZC-F03 | Small lockout suitable for 1/4'' to 1'' pipes in diameter |
| ZC-F04 | Large lockout locks out pipes from 1 1/2'' to 3'' in diameter |
| ZC-F05 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes |
| ZC-F06 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes |
| ZC-F07 | Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes |
| ZC-F11 | Lockout suitable for 1" --- 2 1/2" valve rod |
| ZC-F12 | Lockout suitable for 2 1/2" ---5" valve rod |
| ZC-F13 | Lockout suitable for 5" --6 1/2" valve rod |
| ZC-F14 | Lockout suitable for 6 1/2"---10" valve rod |
| ZC-F15 | Lockout suitable for 10" --13" valve rod |
| ZC-F16 | Lockout suitable for 1" --- 6 1/2" valve rod |
| ZC-F21 | Lockout suitable for 8mm-45mm valve rod |
| ZC-F31 | For quarter-turn ball valves |
| ZC-F32 | For 3.4 or 5-way valves |
| ZC-F33 | Using cable attachment for gate valves |
| ZC-F34 | For butterfly valves |
| ZC-F35 | Universal valve lockout for most valves |
| ZC-F41 | Lockout suitable for valve diameter under 22mm. |
| ZC-F42 | Lockout suitable for valve diameter from 23mm to 34.9mm. |
| ZC-F43 | Lockout suitable for valve diameter from 44mm to 53.9mm. |
| ZC-F14 | Lockout suitable for valve diameter from 55mm to 63.5mm. |
Valve Lockout
Valve lockouts are a single,low cost and effective way to prevent
unauthorised operation of valves.It enables different types and sizes
of valves to be locked out.No other device offers such flexibility and
security.All sizes and colors are available.Custo valve lockout can be
made upon request.
Standard Gate Valve Lockout
OEM manufacturing supported
1. Material: durable polypropylene for superior impact and chemical resistance.
2. Usage: place over the gate valve between the two parts and put your lockout padlock
3. Features: a) OEM Manufacturing Service Supported
b) Easily operated, light weighted,
c) Resistant to cracking and abrasion.
d) Service temperatures from -25°F to 200°F
e) Available in 5 sizes and 4 colors
4. Applied Size: lockout out gate valves from 2.5cm to 33 cm
5. Package: 1 piece
When should you LOCKOUT / TAGOUT?
Lockout / Tagout is necessary whenever you are performing service or maintenance in proximity to a
machine where you could be injured by:
Unexpected start up of the equipment
Release of stored energy
Two Situations are most likely to need Lockout / Tagout:
When you must remove or bypass a guard or other safety device.
When you must place any part of your body where you could be caught by moving machinery.
Some jobs for which Lockout /Tagout should be used are:
Repairing electrical circuits
Cleaning or oiling machinery with moving parts
Clearing jammed mechanisms
Legislations requires each employer to use Lockout / Tagout equipment.
Ultimately, it is up to us to safeguard all operators and our own life and health
by complying with the rules and using these locking solutions for safety.
Why Use Lockout/Tagout
Lockout is the use of a lock to render machinery or equipment inoperable or to
isolate an energy source. The purpose is to establish "zero energy". This is where
all sources of energy including electrical, pneumatic, hydraulic, mechanical and stored
energy are isolated so that they pose no danger.
The purpose of zero energy and lockout is to prevent the release of an energy source
that could activate moving parts on equipment or machinery.
What is Lockout
Lockout-
tagout (LOTO) or lock and tag is a safety procedure which is used in industry and research settings to ensure that dangerous
machines are properly shut off and not started up again prior to the completion of maintenance or servicing work. It requires
that hazardous power sources be "isolated and rendered inoperative" before any repair procedure is started. "Lock and tag"
works in conjunction with a lock usually locking the device or the power source with the hasp, and placing it in such a position
that no hazardous power sources can be turned on. The procedure requires that a tag be affixed to the locked device indicating
that it should not be turned on.
Lockout Catalog
We offer a broad range of durable, easy-to-use lockout devices that cover most of the mechanical and electrical applications. Lockout labels, Signs, Posters and Tags are also available for the identification of Hazards.
All the above shows our products are widly popular inAsia, Europe,
North America,South America,Africa,Oceania,Antarctica.And our
company has our own R & D team that can design accroding to
customers'requirments.
