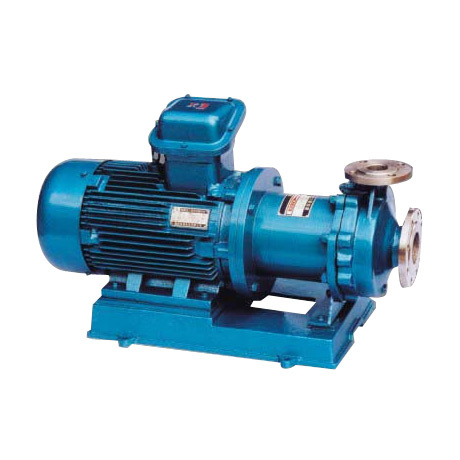

Cqb Magnetic Pump
Price: |
US $ 1000/Piece |
Trade Terms: |
FOB,CIF,CIP |
Min Order: |
1/Piece |
Pay Type: |
T/T,D/P |
Flow: 3.2-100m3/h head:20-80m power: 0.75~75KWCQB magnetic pump characteristics1. Good anti-corrosion performanceThe wet part is made of stainless steel, high-density carbon, high-purity oxidized AL ceramics, filled by PVDF, in an anti-leak seal structure.2. High-efficiency/energy-saving design
High-efficiency 50-55%, energy-saving design.3. Easy maintenance.Technical parameters:Type | Diameter (mm) | flow (m3/h) | head (m) | (npsh)r(m) | Rotation speed (r/min) | Motor power (kw) |
inlet | outlet |
cqb32-20-125 | 32 | 20 | 3.2 | 20 | 5.0 | 2900 | 1.1 |
cqb32-20-160 | 32 | 3.5 | 1.5 |
cqb40-25-105 | 40 | 25 | 6.3 | 12.5 | 6.0 | 1.1 |
cqb40-25-125 | 20 | 6.0 | 2.2 |
cqb40-25-160 | 32 | 3.5 | 3 |
cqb40-25-200 | 50 | 3.5 | 5.5 |
cqb50-40-85 | 50 | 40 | 12.5 | 8 | 3.5 | 1.1 |
cqb50-32-105 | 32 | 12.5 | 3.5 | 2.2 |
cqb50-32-125 | 20 | 3.5 | 3 |
cqb50-32-160 | 32 | 3.5 | 4 |
cqb50-32-200 | 50 | 3.5 | 7.5 |
cqb50-32-250 | 80 | 3.5 | 15 |
cqb65-50-125 | 65 | 50 | 25 | 20 | 4.0 | 5.5 |
cqb65-50-160 | 32 | 4.0 | 7.5 |
cqb65-40-200 | 40 | 50 | 4.0 | 15 |
cqb65-40-250 | 80 | 4.0 | 22 |
cqb80-65-125 | 80 | 65 | 50 | 20 | 4.0 | 7.5 |
cqb80-65-160 | 32 | 4.0 | 15 |
cqb80-50-200 | 50 | 50 | 4.0 | 18.5 |
cqb80-50-250 | 80 | 4.0 | 37 |
cqb100-80-125 | 100 | 80 | 100 | 20 | 4.0 | 15 |
cqb100-80-160 | 32 | 4.0 | 22 |
cqb100-65-200 | 65 | 50 | 4.0 | 37 |
cqb100-65-250 | 80 | 4.0 | 55 |
Prod Model: |
CQB |
Markets: |
South America,Southeast Asia,Africa,Mid East |
Pump: |
Water Pump |
Magnetic Pump: |
Electric Water Pump |
Impeller Number: |
Single-Stage Pump |
Working Pressure: |
Middle Pressure Pump |
Influent Type Of Impeller: |
Single Suction Pump |
Position Of Pump Shaft: |
Horizontal Pump |
