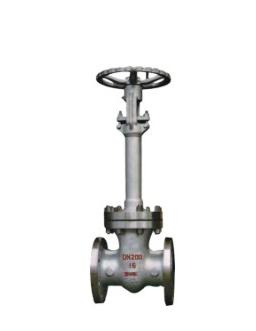

CRYOGENIC GATE VALVE
CLASS 150LB~600LB
BOLTED LENGTHEN BONNET, Threaded or welded seat ring
Full bore, OS&Y, Rising stem, Flexible wedge
Body Material: ASTM A352 LCB, LC1, LC2, LC3, LC4, A351 CF8, A351 CF8M
Standards compliance
Design and Manufacture: API 600, API 6D, BS1414
Face to face (end to end): ANSI B16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
SANBORA Valve Co., Ltd, one of proffessinal company for ball valve\ Special valve manufactory company in China which products are widely in the industrial pipelines of petroleum, and we offer you:
Type: API6D: Gate, Globe, Check, Ball, Plug and Butterfly valve etc,
Special valve: Anti-coking four ways ball valve\hydrogen compressor ball valve\Obit ball vavle\Electricity ball valve\24-way molecular sieves valve\ PTA special valve \ Melt over valve\Bellows globe valve etc,
Size: From 1/2" to 56"(DN15--DN1400);
Class rating: From 150Lbs to 2500Lbs (PN16--PN420);
Material range: From Carbon steel, alloy steel, stainless steel, Super-duplex stainless steel and special alloy steel like Monel, Inconel, PIA;
Working temperature: From -196 centidegree to 650 centidegree.
We have exported our business in 15 courtries and districts, mainly in Europe, North America, South Asia, Russia and awe wonder whether we'd be able to have the opportunnity to work together with you with our professional experience, with reasonalbe price, good quality and delivery.
