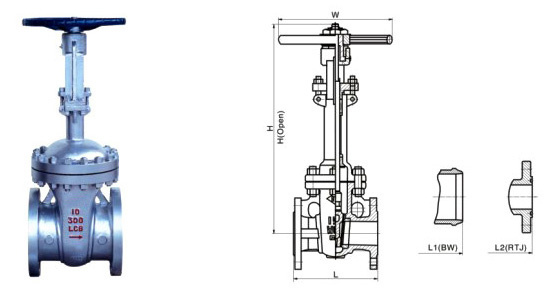

Cryogenic Gate Valve
| Price: |
Negotiable |
| Min Order: |
1 |
Standards compliance
Design and Manufacture: API 600, API 6D, BS1414
Face to face (end to end): ANSI B16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D.
|
NO. |
Part |
A352 LCB |
A352 LC1 |
A352 LC2 |
A352 LC3 |
A352 LC4 |
A352 CF8 |
|
1 |
Body |
A352 LCB |
A352 LC1 |
A352 LC2 |
A352 LC3 |
A352 LC4 |
A352 CF8 |
|
2 |
Seat ring |
A182 F304+STL |
A182 F304+STL |
A182 F304+STL |
A182 F304+STL |
A182 F304+STL |
A182 F304+STL |
|
3 |
Wedge |
A352 LCB+STL |
A352 LC1+STL |
A352 LC2+STL |
A352 LC3+STL |
A352 LC4+STL |
A352 CF8+STL |
|
4 |
Stem |
A182 F6a |
A182 F304 |
|
5 |
Gasket |
Spiral wound/Soft Iron/PTFE |
|
6 |
Bolt |
A320 L7 |
A193 B8 |
|
7 |
Nut |
A193 2H |
A194 8 |
|
8 |
Back seat |
A182 F6a |
A182 F304+STL |
|
9 |
Yoke |
A352 LCB |
A352 LC1 |
A352 LC2 |
A352 LC3 |
A352 LC4 |
A352 CF8 |
|
10 |
Gland Bocking |
Graphite |
|
11 |
Gland |
A182 F6a |
A182 F6a |
A182 F6a |
A182 F6a |
A182 F6a |
A182 F6a |
|
12 |
Gland Flange |
A352 LCB |
A352 LC1 |
A352 LC2 |
A352 LC3 |
A352 LC4 |
A352 CF8 |
|
13 |
Stem nut |
Cu-Aolly, A439 D-2 |
|
14 |
Yoke nut |
A194 2H |
|
15 |
Handwheel |
Malleable Iron/cast steel/Ducile/Fabricated |
|
16 |
Handwheel nut |
A194 2H |
|
17 |
Nameplate |
Stainless steel |
|
18 |
Pin |
A182 F6a |
|
Working temperature |
-46 font |
-60 font |
-73 font |
-101 font |
-115 font |
-196 font |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
Jiangshu Chengyi Valve Co., Ltd. is Located in Lianyungang Guannan Industrial Zone, Jiangshu Provice. Our factory covers 35000 square meter, staff 206, 16 persons for Engineering and technical. At the same time. We have numerical control, large lathe, special metal-cutting machines and quality inspection service and so on all 150 units. They could reseach, design, develop, manufacture and inspect valves. Especially, we obtain API, GE, TS and so on certificates. While initiating all-round CAD in production.
We mainly produce gate valve, butterfly valve, ball valve, globe valve, check valve, filter and other 50 serials. We produce valves according to ISO, API, BS, DIN, JPI, GB, JB, standards with diameter range: NPS1/2"-56, DN15-2600mm, pressure range: Class 150Lb-4500Lb, PN 0.1Mpa-700Mpa, and temperature range: -196 - 680degree Celsius. They are made of such material as carbon steel, alloy steel, stainless steel, titanium, Monel, alloy 20 and so on. We could provide valve according to our clients' material.
Our products are reasonable structure, Unipque technical exquisite, complete specification, relible quality. Our products have been wideli used in industrial pipeline matched for petroleum, chenical industry, metallurgy, electric power, military industry and projects.
Our slogan: Quality is our existence of fundamental, Efficiency is our development foundation, Reputation is based on our security, Satisfaction is our basic pursuit.
