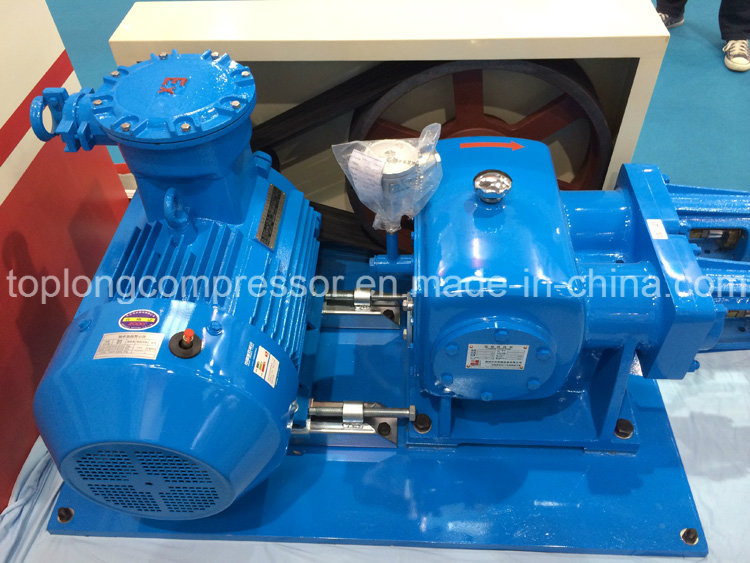

Cylinder Filling Pump
Liquids Pumped
LO2, LN2, LAR, LNG
Technical Parameters
Optional Configuration
Frequency converter
Overpressure interlocking device
Safe valve/Cryogenic check valve
Temperature interlocking device of outlet
Temperature interlocking device inside pump
Featuring
Classic design, stable performance, service life of product can last as long 20 years
Vacuum jacketed pump head with 10-5 torr vacuum degree and low cold loss
Reliable sealing effect, filling service life is as many as 1500, 000 cylinder times.
Service life of piston ring is as many as 300, 000 cylinder times.
Convenient reparation, regularly Only 2 hours will be enough
Can be kept functioning continuously for 24 hours
| Model | Type | Flow Range L/h | Inlet Pressure Mpa
| Max Pressure Mpa |
SVOC30-80/165
SVNB50-150/165
SVNB100-450/165
SVMB300-600/165
SVMA400-800/165 | Single
Horizontal
Piston | 30-80
50-150
100-450
300-600
400-800 | 0.02-1.6 | 16.5 |
DVNA400-1000/165
DVMB600-1200/165
DVMA800-1600/165 | Double\
Horizontal
Piston | 400-1000
600-1200
800-1600 | 0.02-1.6 | 16.5 |
SVNB100-200/200
SVNB200-450/200
SVMB300-600/200 | Single\
Horizontal
Piston | 100-200
200-450
300-600 | 0.02-1.6 | 20.0 |
