| Price: | US $ 2-3/Piece |
|---|---|
| Trade Terms: | FOB,CFR,others |
| Min Order: | 10/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Characteristic | 1.Direct acting structure with less power comsumption for long time working 2.Applied to pressure system opened from 0.0Mpa 3.Life span can be over 500000 times |
Medium | Air, water etc. |
| Temperature | NBR: -10°C to 80 °C EPDM: -10°C to 120 °C VITON:-10°C to 150 °C |
Pressure | 0.0-0.8Mpa |
| Port size | 1/4' quick fitting |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 10.0mm |
| Voltage | DC-12V,24V AC-24V,120V,240V/60HZ,110V,220V/50HZ |
Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
Special coils | Latching coil:DC6-24V as requested |
| Material | Body- POM.PP Seal- NBR,EPDM,VITON Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |

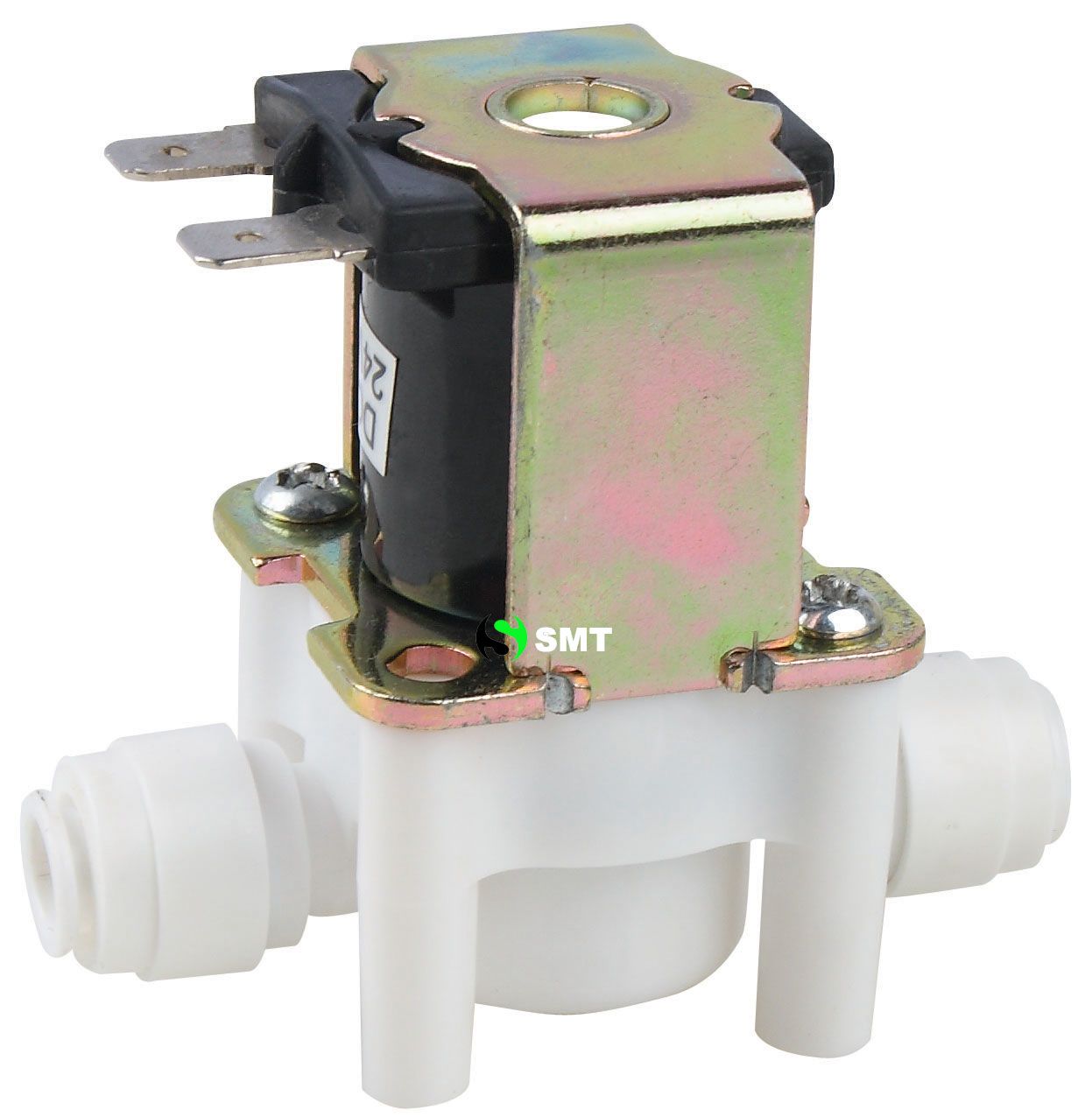

| Prod Model: | Cws10 Auto Flush Solenoid Valve |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/8 to 2" |
| Temperature: | 0 to 150 |
| Seal: | NBR, Viton, Ptfm |
| Voltage: | 12, 24, 110, 220 |
| Certification: | CE ISO |
| Port Size: | 1/4' Quick Fitting |
| Connection Form: | Thread |
| Valve Structure: | Direct Action Diaphragm Structure |
| Power Supply: | AC Solenoid Valve |
| Type: | Normal Open and Normal Close |
| Pressure: | 0 to 12 Bar |
