Outline

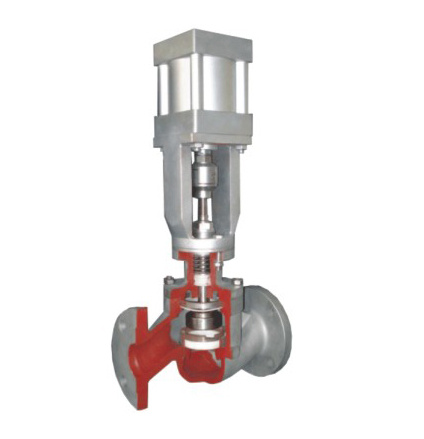

RV cylinder type pneumatic control valve is accordance with intemational standard (ISO6431). QGB pneumatic actuator is powered by compressed air and outputs thrust or pull force through rectilinear motion of piston and piston rod to open or close the valve with linear travel. The pneumatic control valve is provided with an intelligent electro pneumatics valve positioner to receive a 4-20ADC control signal of adjuster from computer, and at the same time outputs a 4-20 ADC valve position feedback signal corresponding to actuator travel in order to adjust the opening of valve by remote control. The pneumatic actuator may adopt double acting form: Spring return single action form, hand wheel from, etc.
Model preparation instructions
C— Carbon steel
40— 40 4.0Mpa
H— Sealing surface material: H metal seal
F PTFE seal, X rubber seal
41— Connection: 41 flanged
6— Rotation mode: 6 pneumatic
J— Valve type: J close valve
RV— River-wave product
Technical parameters and performance indicators
1, working medium: Clean, dry and F free from corrosive gas
2, gas source pressur: 0.3~0.7Mpa
3, ambient temperature: Standard type: -20° C~+80° C
High temperature type: -20° C~+80° C
Low temperature type: -40° C~+80° C
4, lubrication: No lubricant is applied under normal working condition
5, output thrust or pull force: See table 1
Travel: According to users' demand.
