Based on the customers feedbacks and overwhelming demand, our engineers have upgraded the DAC-01 by redesigning the internal wiring and adjusting parameters. Now the new version is DAC-01A.
The DAC-01A stands out with its high fidelity vacuum tube output. With no less than five sources signal inputs for selecting: DVD/CD, AUX, coaxial, optical and USB input. This is easy the best bang for the money.
The DAC-01A lets you "upgrade" the music listening experience, for any type audio setup, from computer-based systems, to network music devices, or standard CD/DVD etc. Just plug it into your existed setup and enjoy the superior high end sound quality.
This is a newer design so not like the old Tube DAC. The unit have two output, one with transistor and one with single 6N3 vacuum tube. So you can change the two output to find more fun. You can compare the sound between the two output then find out which can match you listen taste.
(5) sets of inputs: Including (2) sets of analog RCA inputs(DVD/CD, AUX), (1) coaxial, (1) optical and (1) USB input.
(2) sets of RCA outputs - transistor and vacuum tube.
Built-in headphone amplifier: Allows you to enjoy music with privacy. Great power, music layers and details.
Genuine imported processing chip. All resistors and capacitors are audiophile grade to ensure sound quality. Key parts are from Germany and Taiwan etc...
R-shape high efficiency transformer.
Separate power supply rectification to analog and digital circuits.
Gold coated RCA connectors and coaxial connector.
Vacuum tube output use well-known Chinese 6N3 tube. It can be replaced with 5670 type of tube.

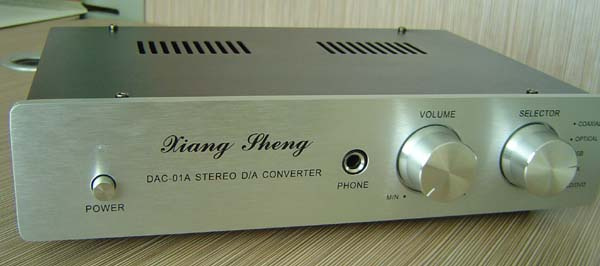

Brushed aluminum faceplate, with all metal buttons and knobs, plus blue LED indicator light.
Having two RCA analogy un-balance output(Normal Output and Tube Output), can be connected to transistor amplifier and tube amplifiers.
The volume potentiometer does not control volume on the line outputs, just the headphone.
Technical Specifications:
Tube Used 6N3 ( can be replaced with 5670 tube)
Digital Audio Inputs (2) sets of analog RCA inputs (DVD/CD, AUX), (1) coaxial, (1) optical and (1) USB input.
Stereo Audio Outputs (2)analog stereo outputs via RCA Left/Right channel: Normal Output and Tube Output.
Headphone Amplifier Output Output Power: 1000mW-300mW
Impedance: 32 ohm -600 ohm
Sampling Frequency 32kHz\44.1kHz\48kHz\88.2kHz\96kHz depending on source.
Resolution Capability This DAC-01A supports 16bit\20bit and 24bit audio depending on source.
Input Impedance Analog: 100 kohm
Digital: 75 ohm
Line Output Impedance 600 ohm
Output Voltage > 2000mV
Dynamic Range 117 dB
Frequency Response 20Hz-30kHz
Signal-To-Noise Ratio(SNR) Normal Output: 96dB; Tube Output: 90dB
Total Harmonic Distortion Normal Output: Less than 0.001%
Tube Output: Less than 0.1%
Power Supply 100-240VAC 50/60Hz
Dimension 260mm (W) x 167mm (D) x 55mm (H)
Net Weight 2 KG
Color Silver & Black
Hefei Xiangsheng Electronics Co., Ltd is a private enterprise focusing on tenology, which located in the New&High-tech district. We are a original and professional manufacturer of all types of Hi-Fi Amplifier, such as vacuum tube amplifier, pre-AMP, intergrated amplifier, and hige qualified D/A tube converter.
We hold the conception of providing high quality products with low price for all the audio fanciers. We make efforts to provide with the best services. Our products sell towards the United States, Germany, Korea, Canada, France, Indonesia, Hong Kong, Taiwanese etc. We also offer OEM services for many well-known companies in Japan, Europe, USA, and Taiwan etc.
Our products featured with solemn pattern/style, excellent accessories and pure&natural voice. It is a great joy to immersed in the music with our products. Our products have gained high reputation in domestic and foreign markets due to our high quality and affordable price. ODM and OEM enquiries are warmly welcomed.
Our products with D-2020series, D-2020A series, D-2030A series tube amplifier got the CE authentication in Italy.
