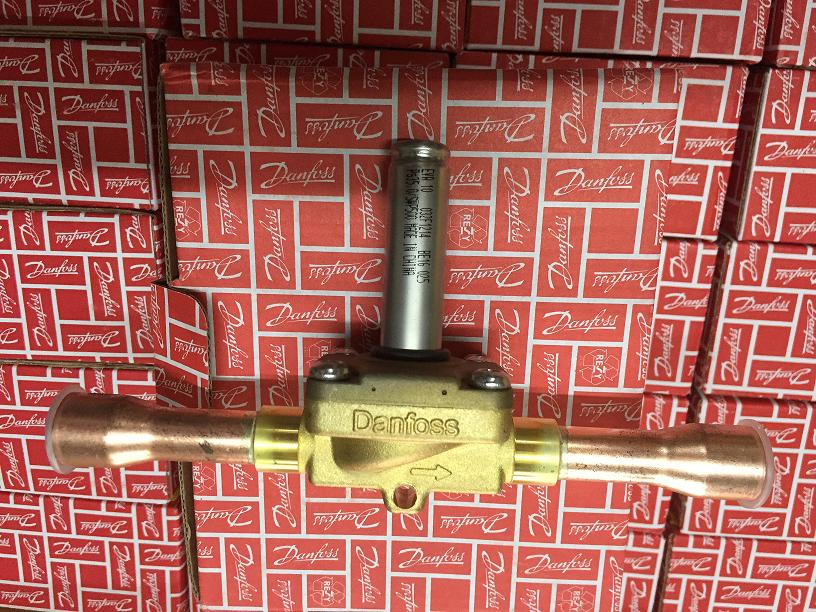

Danfoss Solenoid Valve (refrigeration system control)
Price: |
US $ 40/Piece |
Trade Terms: |
FOB |
Min Order: |
20/Piece |
Pay Type: |
L/C,T/T |
SpecificationsDanfoss Solenoid Valve EVR series1.Work well in difficult situation.2.Solid construction3.Outstanding reliabilityHigh Quality Danfoss Solenoid ValveEVR is a direct or servo-operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants.EVR valves are supplied complete or as separate components, i.e. valve body, coil and flanges, if required, can be ordered separately. Feature:Complete range of solenoid valves for refrigeration, freezing, and air conditioning plants.Supplied both normally closed (NC) and normally open (NO) with de-energized coil.Wide choice of coils for a.c. and d.c.Suitable for all fluoridated refrigerants.Designed for media temperatures up to 221°F. MOPD up to 363 psi with 12 W coil.Flare connections up to 5/8 in.Extended ends for soldering make installation easy.It is not necessary to dismantle the valve when soldering in.EVR are also available with flange connections.Refrigerants:1. CFC, HCFC, HFC.Temperature of medium:1.40 to +221°F with 10 W or 12 W coil.2.Max. 266°F during defrosting. More models for your reference:Model | Coil Type | Connection Size | Product Code (body without coil) |
Flared | ODF |
in. | mm | In./mm | in. | mm | With manual operation | Without manual operation |
EVR2 | a.c. | 1/4 | 6 | 032F8056 | 032F1201 | 032F1202 |
|
|
EVR3 | A.c./d.c. | 1/4 | 6 | 032F8107 | 032F1206 | 032F1207 |
|
|
3/8 | 10 | 032F8116 | 032F1204 | 032F1208 |
|
|
EVR6 | 3/8 | 10 | 032F8072 | 032F1212 | 032F1213 |
|
|
1/2 | 12 | 032F8079 | 032F1209 | 032F1236 |
|
|
EVR10 | 1/2 | 12 | 032F8095 | 032F1217 | 032F1218 |
|
|
5/8 | 16 | 032F8098 | 032F1214 | 032F1214 |
|
|
EVR15 | 5/8 | 16 | 032F8101 | 032F1228 | 032F1228 |
|
|
5/8 | 16 | 032F8100 |
|
| 032F1227 |
|
7/8 | 22 |
| 032F1225 | 032F1225 |
|
|
EVR20 | a.c. | 7/8 | 22 |
| 032F1240 | 032F1240 |
|
|
7/8 | 22 |
|
|
| 032F1254 |
|
1-1/8 | 28 |
| 032F1244 | 032F1245 |
|
|
d.c. | 7/8 | 22 |
| 032F1264 | 032F1264 |
|
|
7/8 | 22 |
|
|
| 032F1274 |
|
EVR22 | a.c. | 1-3/8 | 35 |
| 032F3267 | 032F3267 |
|
|
EVR25 | A.c./d.c. | 1-1/8 |
|
|
|
| 032F2200 | 032F2201 |
| 28 |
|
|
| 032F2205 | 032F2206 |
1-3/8 | 35 |
|
|
| 032F2207 | 032F2208 |
EVR32 | 1-3/8 | 35 |
|
|
| 042H1105 | 042H1106 |
1-5/8 |
|
|
|
| 042H1103 | 042H1104 |
| 42 |
|
|
| 042H1107 | 042H1108 |
EVR40 | 1-5/8 |
|
|
|
| 042H1109 | 042H1110 |
| 42 |
|
|
| 042H1113 | 042H1114 |
2-1/8 | 54 |
|
|
| 042H1111 | 042H1112 |
EVR3 032F1204 |
EVR3 032F8107 |
EVR3 032F8116 |
EVR3S 032F1206 |
EVR3S 032F1207 |
EVR6 032F1209 |
EVR6S 032F1212 |
EVR6S 032F1236 |
EVR6S 032F8072 |
EVR6S 032F8079 |
EVR10 032F8095 |
EVR10 032F8098 |
EVR10S 032F1217 |
EVR10S 032F1214 |
EVR15 032F8101 |
EVR15S 032F1225 |
EVR15S 032F1227 |
EVR15S 032F1228 |
EVR20 032F1240 |
EVR20 032F1244 |
EVR20 032F1245 |
EVR20 032F1274 |
EVR22 032F3267 |
EVR25 032F2200 |
EVR25 032F2201 |
EVR25 032F2205 |
EVR25 032F2208 |
EVR32 042H1104 |
EVR32 042H1105 |
EVR32 042H1106 |
EVR40 042H1109 |
EVR40 042H1110 |
EVR40 042H1111 |
EVR40 042H1112 |
Prod Model: |
EVR10 ( 032F1212) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Internal: |
External |
Connection Form: |
Thread |
Type: |
Direct Acting |
Valve Structure: |
Pilot Piston Structure |
Power Supply: |
AC Solenoid Valve |
Application: |
Household Usage |
