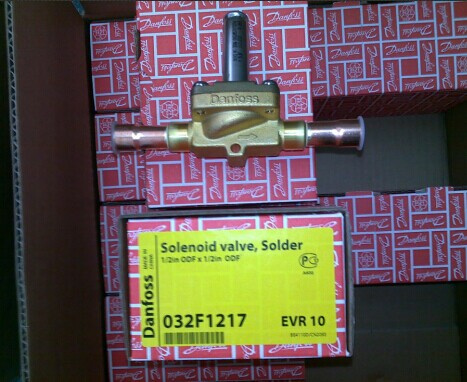

Danfoss Solenoid Valves & Coils (EVR10) 032f1217
Danfoss Solenoid Valves
Danfoss Solenoid Valves & Coils(EVR10)
Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
Supplied both normally closed (NC) and normally open (NO) with de-energized coil
Wide choice of coils for a. C. And d. C.
Suitable for all fluorinated refrigerants
Designed for media temperatures up to105 C
MOPD up to 25 bar with 12 W coil
Flare connections up to 5/8 in.
Solder connections up to 2 1/8 in.
Extended ends for soldering make installation easy It is not necessary to dismantle the valve when soldering in.
EVR are also available with flange connections
Model | Coil Type | Connection Size | Product Code (body without coil) |
Flared | ODF |
in. | mm | In./mm | in. | mm | With manual operation | Without manual operation |
EVR2 | a.c. | 1/4 | 6 | 032F8056 | 032F1201 | 032F1202 |
|
|
EVR3 | A.c./d.c. | 1/4 | 6 | 032F8107 | 032F1206 | 032F1207 |
|
|
3/8 | 10 | 032F8116 | 032F1204 | 032F1208 |
|
|
EVR6 | 3/8 | 10 | 032F8072 | 032F1212 | 032F1213 |
|
|
1/2 | 12 | 032F8079 | 032F1209 | 032F1236 |
|
|
EVR10 | 1/2 | 12 | 032F8095 | 032F1217 | 032F1218 |
|
|
5/8 | 16 | 032F8098 | 032F1214 | 032F1214 |
|
|
EVR15 | 5/8 | 16 | 032F8101 | 032F1228 | 032F1228 |
|
|
5/8 | 16 | 032F8100 |
|
| 032F1227 |
|
7/8 | 22 |
| 032F1225 | 032F1225 |
|
|
EVR20 | a.c. | 7/8 | 22 |
| 032F1240 | 032F1240 |
|
|
7/8 | 22 |
|
|
| 032F1254 |
|
1-1/8 | 28 |
| 032F1244 | 032F1245 |
|
|
d.c. | 7/8 | 22 |
| 032F1264 | 032F1264 |
|
|
7/8 | 22 |
|
|
| 032F1274 |
|
EVR22 | a.c. | 1-3/8 | 35 |
| 032F3267 | 032F3267 |
|
|
EVR25 | A.c./d.c. | 1-1/8 |
|
|
|
| 032F2200 | 032F2201 |
| 28 |
|
|
| 032F2205 | 032F2206 |
1-3/8 | 35 |
|
|
| 032F2207 | 032F2208 |
EVR32 | 1-3/8 | 35 |
|
|
| 042H1105 | 042H1106 |
1-5/8 |
|
|
|
| 042H1103 | 042H1104 |
| 42 |
|
|
| 042H1107 | 042H1108 |
EVR40 | 1-5/8 |
|
|
|
| 042H1109 | 042H1110 |
| 42 |
|
|
| 042H1113 | 042H1114 |
2-1/8 | 54 |
|
|
| 042H1111 | 042H1112 |
