Home Valve Products Dbb Forged Stainless Steel Monoflange Valve (Q41)

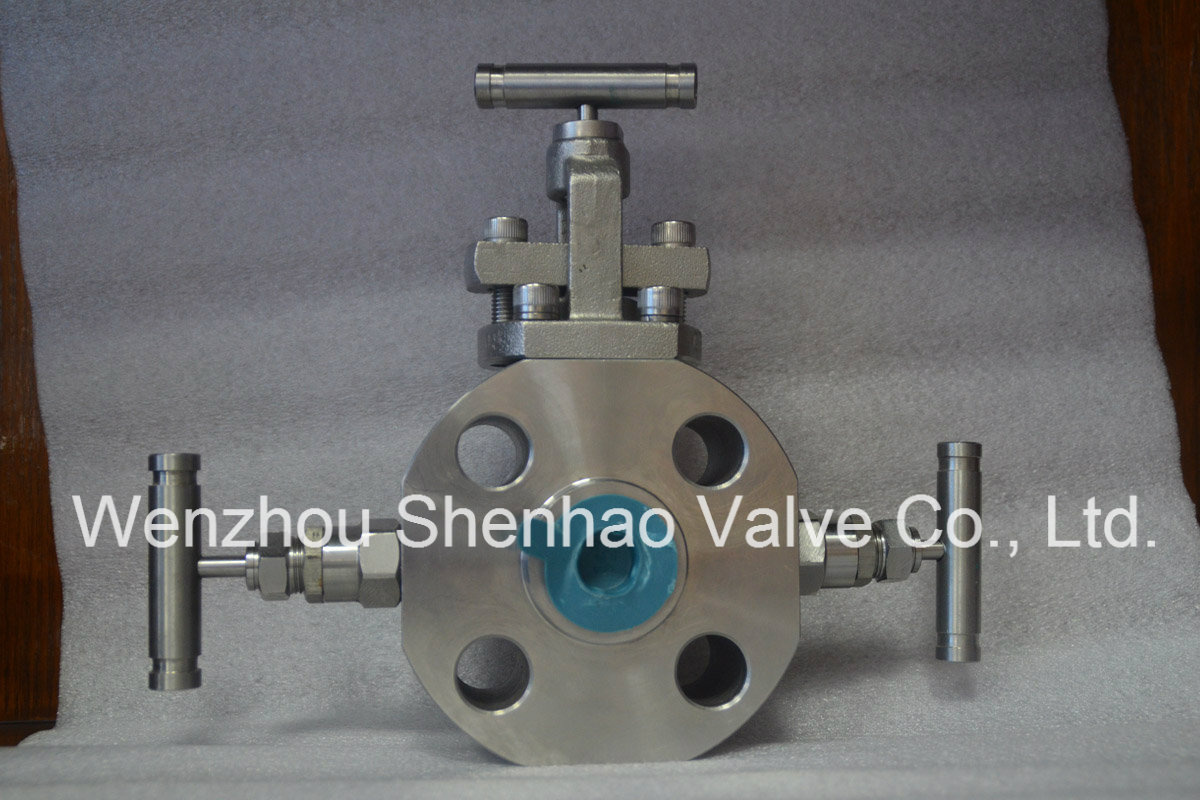

Dbb Forged Stainless Steel Monoflange Valve (Q41)

Dbb Forged Stainless Steel Monoflange Valve (Q41)
Price: US $ 50-75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
DBB Forged Stainless Steel Monoflange valve Conform to API 6D, BS5351, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25

1. Construction is as follows


- Full Port or Reduce Port
- Twin Ball Design
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Double Block and Bleed
- With Needle Bleed Valve
- With Drain Valve
- Screwed Ends to ASME B1.20.1
- Flanged Ends to ASME B16.5


2. Main Part & Materials


Part Names
Part Materials
BodyA105LF2F22F304F316F304LF316L
BonnetA105LF2F22F304F316F304LF316L
BallA105+ENPSS304F22SS304SS316SS304LSS316L
StemA105F304F6aF304F316F304LF316L
Seat/Seat RingPTFE/RPTFE/NYLON/DEVLON/PEEK or METAL
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °C


3. Normal Pressure Rating

PN10~PN420, CLASS150~2500

4. Normal Size Range

DN15~DN300, 1/2"~12"
Prod Model: Q41
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Characteristic: Monoflange Valve
Design & Manufacture: API 6D, Asme B16.34 & BS5351
Pre-Temp. Rating: Asme B16.34
Face To Face: Asme B16.10
Ends Connection: RF, Rtj, Bw
Inspect & Test: API 598
Certificate: API6a,API6d,CE,ISO9001:2008
Export Markets: Global
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Application: Household Usage
Type: Twin Ball Valve
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.

SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.

We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.

We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.

We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!

We are looking forward to work with you!
