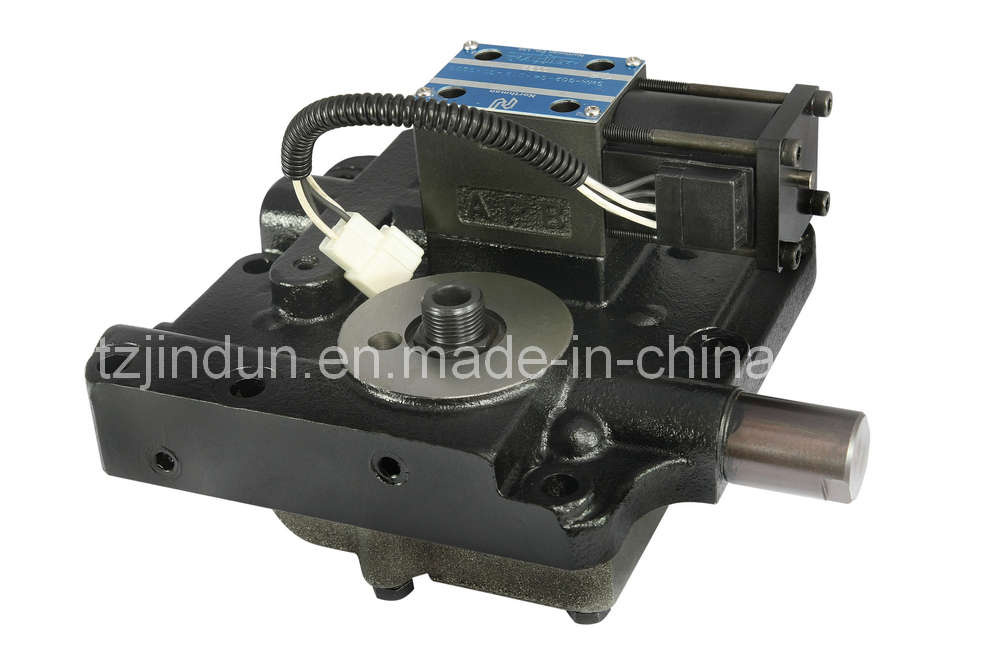

Be applied to hydraulic transmission box of TCM, 3t.
OEM cod: FD30T6
Figure Number: 116H3-82351
Nominal Pressure 2.5 MPa
Nominal Flow Rate 25L / min
Constant Pressure Valve Pressure Range 1.1~1.4 MPa
Relief Valve Pressure Range 0.5~0.7 MPa
Spool Operatingforce max. 120 N
Rated Voltage UR DC12V
Working Current IR 0.35A
Electromagnetic Insulation Grade H(GB11021-89)
Pressure Fluctuations ± 15%UR
Viscosity Range 10~380mm2/s
Oil Temperature Range -20º C~100º C
Oil&System Cleanliness Rank no lower than 19/16 (GB/T14039-93) or10(NAS1638)
Jindun Engineering Machinery Co., Ltd, established in 1995, is specializing in manufacturing all kinds of engineering machinery hydraulic parts and mechanical parts. The company is located in Chaoxi industrial district, Ruoheng town., Wenling city, Zhejiang Province. At present, it has more than 200 staffs, including 20 engineers and technicians. The production capacity is more than 200 thousand pieces every year.
Our lines are mainly medium/high-pressure multiway valves, reversing control valves, charging pumps for forklift and so on. We can offer different kinds of products according to your equirements.
Jundun features excellent equipments, advanced processes, strong technical force and complete exzaming &testing means, and can independently complete the different processing request and the complex components processing. With a comlete quality control system, JINDUN has passed ISO9001-2000 Quality System Approval.
Based on years of experience and reliable product quality, JINDUN becomes the designated supplier of many famous corporations at home and abroad(like TCM, HELI, XCMG, HANGCHA, etc). Our products are sold far to India, Turkey, Dutch and other countries.
Regarding the requirements of the customers as its own responsibility, JINDUN would like to offer products of reliable quality and perfect after-sale services. JINDUN wishes to creat a beautiful future together with friends from all over the world.
