Product introduction

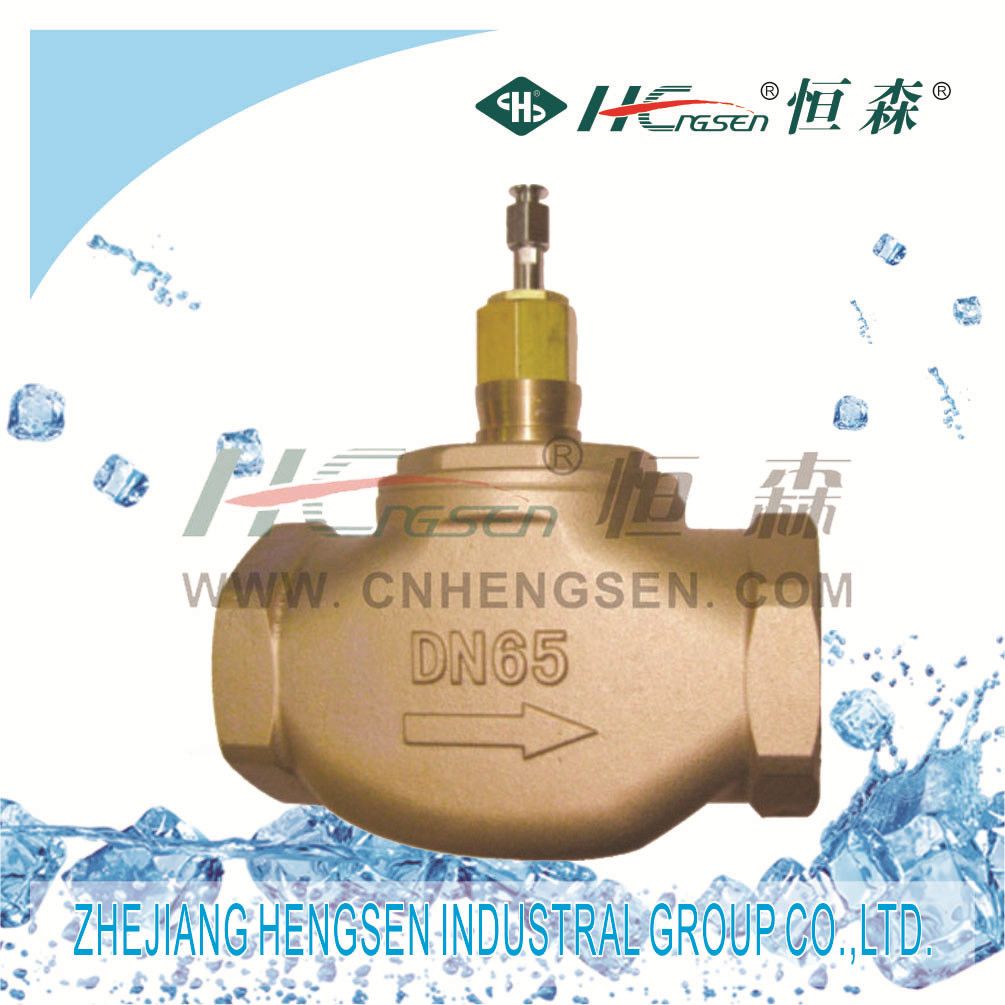

The DF/F-06 series screw cast brass valves can adjust the flow of cold/hot water after it is matched with the controller equipment of DF/Q motor actuator. It is available for the liquid control system such as the central air-conditioner, heating, water disposal, industry processing and so on.
Features
The seal parts of valve stem: NBR seal parts of four-layer V type or O type group
Valve stem: Stainless steel 1Cr18Ni9Ti
Valve core: Brass or 1Cr18Ni9Ti
Bearing: 1.6MPa
Work medium: Water, flow temperature: -10~95º C
Flow feature: Less than 0.05% of KV
Type
| Caliber
(mm) | Model
| Coefficient(KV) | Max. pressure(MPa)) | Valve journey stem |
| DF/F-06-2050JD | DN50 | 2-WAY | 32 | 0.6 | 20 |
| DF/F-06-2065JD | DN65 | 2-WAY | 48 | 0.6 | 20 |
| DF/F-06-2080JD | DN80 | 2-WAY | 60 | 0.6 | 20 |
| DF/F-06-2050HC | DN50 | 2-WAY | 32 | 0.6 | 20 |
| DF/F-06-2065HC | DN65 | 2-WAY | 48 | 0.6 | 20 |
| DF/F-06-2080HC | DN80 | 2-WAY | 60 | 0.6 | 20 |
