Product introduction

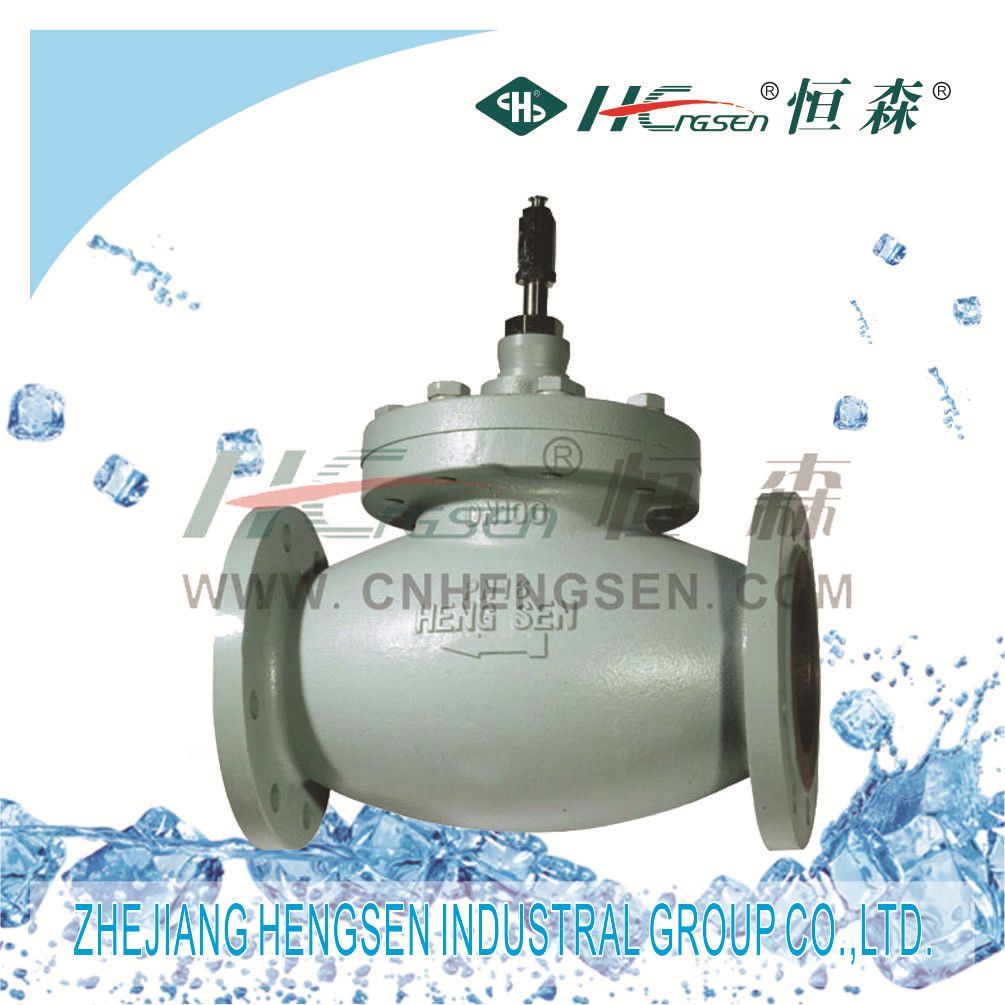

The DF/F-07(07P) series cast steel valves can adjust the flow of cold/hot water. It is available for the liquid control system such as the central air-conditioner, heating, water disposal, industry processing and so on.
Features
Larger KVS.
Pressure balance structure can effectively decrease flux lash, noise and shock.
Technical data
The seal parts of valve stem: Fluorine rubbers seal parts, and Teflon seal cartridge.
Valve stem, core and seat: Stainless steel 1Cr18Ni9Ti
Valve body: Cast iron HT250
Bearing: 1.6MPa
Work medium: Water, flow temperature: -10~95º C
Flow feature: Less than 0.05% of KV
Type
| Caliber
(mm) | Model
| Coefficient(KV) | Max. pressure(MPa)) | Valve journey stem |
| DF/F-07(07P)-2050HC | DN50 | 2-WAY | 35 | 0.6 | 20 |
| DF/F-07(07P)-2065HC | DN65 | 2-WAY | 53 | 0.6 | 20 |
| DF/F-07(07P)-2080HC | DN80 | 2-WAY | 70 | 0.6 | 20 |
| DF/F-07(07P)-2100HC | DN100 | 2-WAY | 85 | 0.6 | 38 |
| DF/F-07(07P)-2125HC | DN125 | 2-WAY | 106 | 0.6 | 38 |
| DF/F-07(07P)-2150HC | DN150 | 2-WAY | 128 | 0.6 | 38 |
| DF/F-07(07P)-2200HC | DN200 | 2-WAY | 170 | 0.2 | 38 |
