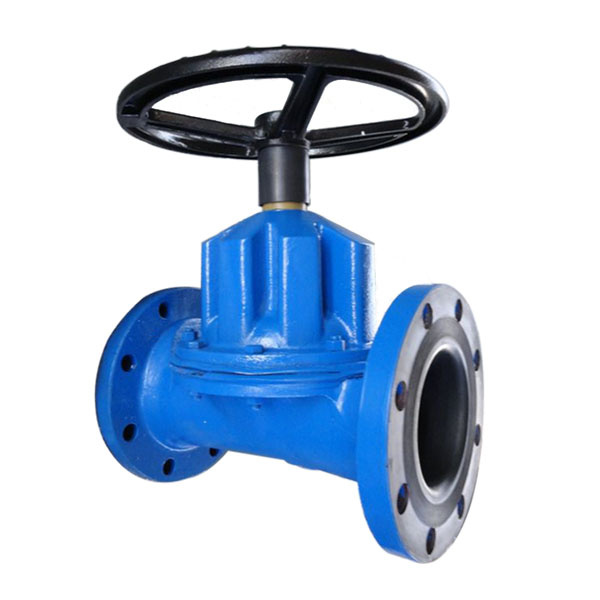

Diaphragm Control Valve

Diaphragm Control Valve
Price: US $ 1.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
DIAPHRAGM VALVE
DESCRIPTION:
1. Working pressure: DN50-DN125 1.0Mpa
DN150-DN200 0.6Mpa
DN250-DN300 0.4Mpa
2. Working temperature: NBR: -20° C ~ +60° C
3. Face to face: EN588-1
4. Flange standards: EN1092-2, BS4504 etc.
5. Testing: DIN3230, API598
6. Medium: Cement, Clay, Cinder, Granular fertilizer and so on solid fluid, Fresh Water, Sea water, inorganic acid and alkaline liquid etc.

Feature:
1. Consistently leaktight, even with solids in the line
2. Full straight through fluid flow
3. Excellent for sludges, slurries or viscous fluids
4. Flows in either direction
5. Isolation of bonnet from fluid
6. Easily cleaned with variety of pigs
7. Simple in-line maintenance


PN Nominal pressure 1.6Mba
Sealing test pressure 1.76Mba
Strength test pressure 2.4Mba
Suitable temperature 80° C

Materials:
. Body/Bonnet: Cast Iron, Ductile Iron,
. Lining: Rubber-NR
. Diaphragm: Rubber
. Disc: Cast Iron, Ductile Iron, Stainless Steel
. Valve spindle: Carbon Steel & Stainless Steel
. Handwheel: Iron & Steel
. Screw nut: Copper alloy
NO. PART MATERIAL
1 BODY Cast iron GG25/Ductile iron GGG40
2 BODY LINED NATURAL RUBBER
3 DIAPHRAGM NATURAL RUBBER
4 VALVE CLACK Ductile iron GGG40
5 BONNET Ductile iron GGG40
6 STEM STAINLESS STEEL
7 BUSH PLASTIC
8 HANDWHEEL Ductile iron GGG40
9 PIN CARBON STEEL
10 BOLT STAINLESS STEEL
DIMENSION:                                                                                                                                                          Units(mm)
DN 50 65 80 100 125 150 200 250 300
L 194 216 258 309 362 412 527 640 755
L1 188 222 252 301 354 404 517 630 745
ΦE 165 185 198 220 250 283 335 395 445
ΦD PN10 Φ125 Φ145 Φ160 Φ180 Φ210 Φ240 Φ295 Φ350 Φ400
(EN1092-2) PN16 Φ355 Φ410

Prod Model: GMV-006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Range: Dn50-Dn400
Valve Body Material: Cast Iron or Ductile Iron
Working Temperature: Natural Rubber -20degrees Celsius-60degrees Celsiu
Suitable Medium: Water,Liquid,Steam
Material: Cast Iron
Structure: Through Way Diaphragm Valve
Actuator: Manual
Function: Field Bus
Connection: Flanged Diaphragm Valve
Standard: as Per Your Request
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.

We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.

We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
