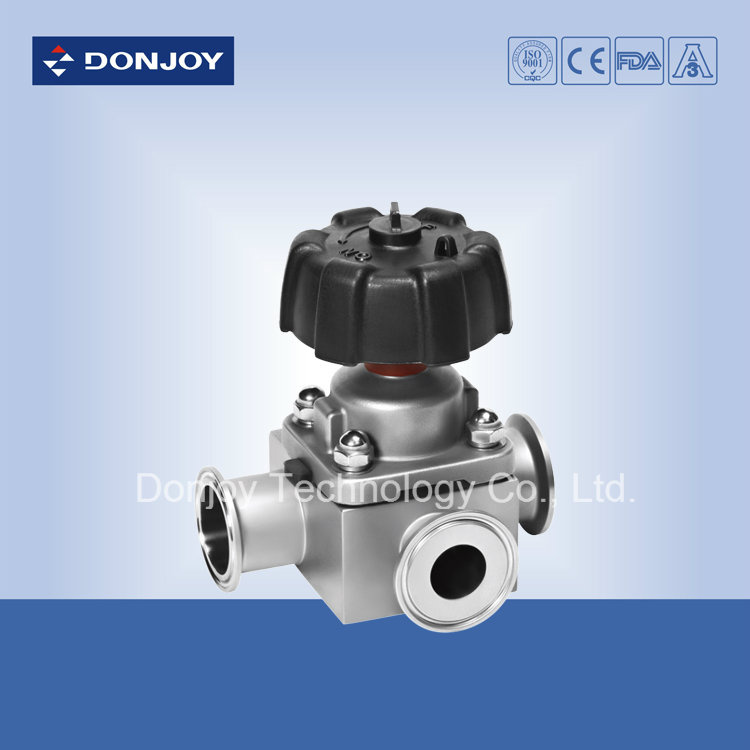

Diaphragm Valve with Plastic Handle

Diaphragm Valve with Plastic Handle
Price: US $ 12.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Sanitary straight pharmacy clamp type toflon diaphragm valve with plastic handle
Material: SS316L
Size: 1"-3", DN20-DN65

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body density higher, the structure is more uniform, no sand hole and other impurities. Then through the processing centre carry on the high precision maching.

Casting body is made by the mould paraffin wax model, paraffin wax model infitration in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax mold, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made uo.
Casting size is very accurate, the outward appearance is a smooth, clean and tidy.
Product Name:Sanitary straight pharmacy clamp type toflon diaphragm valve with plastic handle
Valve Body Material:SS316L
Seal Material:PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Max. Working Pressure:10Bar
Max. Working Temperature:120 degree C
Availably  size:1"-3",DN20-DN65
Availably connection:Clamp/weld/thread/special connection
Availably standard:3A/BPE/DIN/ISO/IDF
Operated:Manual,Pneumatic
Availably structure:Straight, tee, U-type, tank bottom
Control:Smart valve positioner / C-TOP control / position sensor
Certificate:3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery d etails:Usually within 20 days after receiving T/T down payment.

Prod Model: 20309
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/4"-3"
Actuator: Manual
Connection: Welded Diaphragm Valve
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Function: Field Bus
Standard: JIS
Donjoy built up in 1993, with registered capital RMB 55, 08 millions. We focus on developing high quality PID process controller, the valve positioner, the flow controller, the valve control unit, high purity process control valve, intelligent self-control valve, high pure pump, Cleaning technology, piping and pressure vessel safety technology, high pure tubing fitting and pipeline accessories. Donjoy's products and technoligy are widely used in biopharmaceutical, food, drink, wine and other industrial fields. Donjoy's innovation solutions meets growing demand in the industry of biopharmaceutical, food and beverage from the whold wold, special the emerging market.

Raw material, processing technology, welding technology, surface treatment from Donjoy have achieved advanced levels of domestic and foreign marekt. Donjoy producing according to ASME BPE, EHEDG, FDA and 3A standard, get certificate of PED-97/23/EC and MD-06/42/EC issued by TUV, 3A issued by 3A organization, TS licence and ISO9001: 2008.

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

Donjoy has been committed to major technological advances, is your trusted business partners!

Technological innovation, rapid development of the market and customer needs are the greatest challenges facing us today.

Faced with these challenges we are confident, because of highly professional products and technological innovation, we will meet the growing demard of market and customer with our better and better products.
