Specifications
1)Size: DN50-DN300
2)Pressure: 0.6-1.0Mpa
3)Material: Cast Iron, Ductile Iron
4)Design confirm to BS5156
5)Flange standar BS45

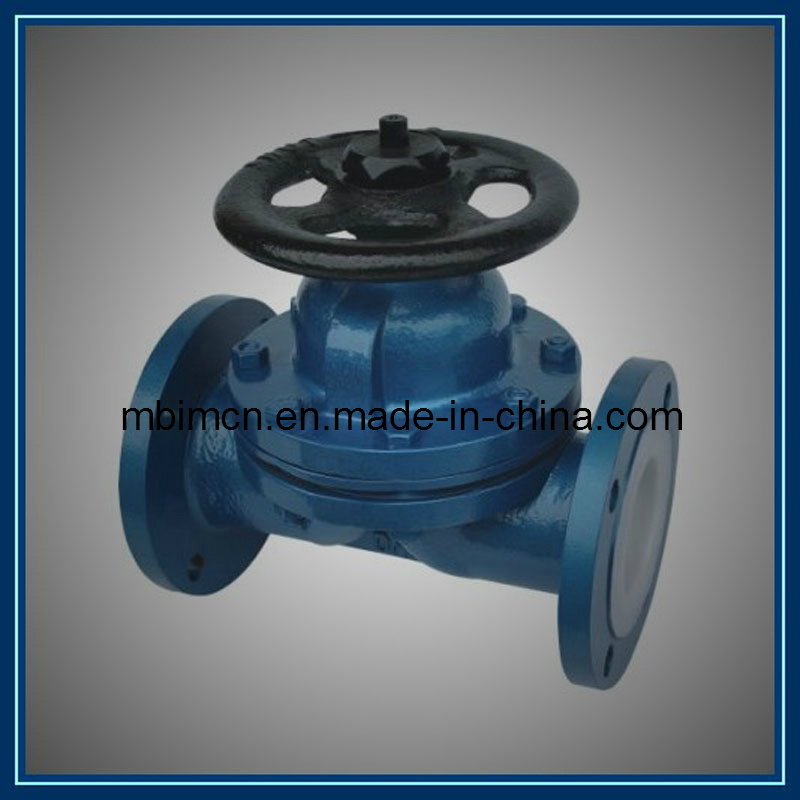

DIAPHRAGM VALVE
Characteristics:
1. Unique product design
Quality assured
Good sealing performance
Excellent corrosion resistance
2. Flange dimensions confirm to GB9113(0.6Mpa)
3. Packaging: Inner packing: Plastic bags, Outer packing: Cartons and wooden case, or as your requirements
4. Delivery: 10-20days after the advance payment
NO.
Parts
Material
1 Body: Cast iron /Ductile cast iron
2 Boday lined: Rubber
3 Diaphragm: Rubber
4 Valve Clapper: Ductile iron GGG40
5 Bonnet: Ductile iron GGG40
6 Stem: STAINLESS STEEL, Carbon Steel
7 Bush: Plastic
8 Lamella: Cast Iron
9 Seat: EPDM, PTFE, NR, JIR
10 Temperature: -10° C-135 ° C
