| Price: | US $ 30000-35000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

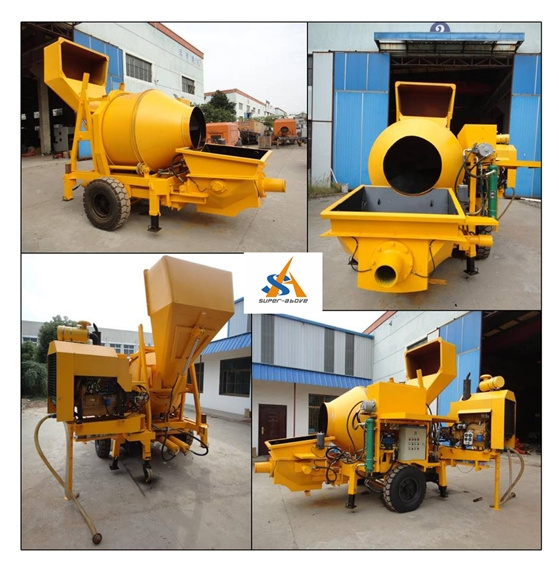

Concrete Pump with Mixer| Item | Unit | B200DP |
| Practical Max output | m³/h | 20 |
| Max. Pressure on Concrete | MPa | 8 |
| The type of distribution valve | S tube valve | |
| Transportation cylinder | mm | 180×800 |
| Main oil cylinder | mm | Φ110/Φ65×800 |
| Oil tank capacity | L | 250 |
| Hopper Capacity | L | 350 |
| Outlet opening diameter | mm | Φ150 |
| Inner dia. Of delivery pipe | mm | Φ125 |
| Diesel engine power | KW | 60 |
| Max. Diameter of aggregates | mm | 40 |
| Pulling speed | Km/h | ≤8 |
| Maximum theoretical delivery Horizontal distance | M | 200 |
| Maximum theoretical delivery Vertical distance | M | 40 |
| Mixer type | RDCM-500 | |
| Charging Capacity of Mixing Drum | L | 500 |
| Discharging Capacity of Mixing Drum | L | 800 |
| Hydraulic motor of drum | A2F | |
| Water pump motor control | Electromagnetic clutch | |
| Drum rotary speed | rpm | 15 |
| Charge hopper average hoisting speed | m/s | 0.3 |
| Length ×width ×height | mm | 5900×2300×3100 |
| Weight | kg | 5000 |
| Container Loading Quantity | 1 Set/20GP, 2 Sets/40HQ |
| 80 Meters of Pipes (Attached with Machine) | ||
| Name | Specification | Quantity |
| 5 inch straight pipe | Length: 3m | 24 |
| 5 inch straight pipe | Length:2m | 1 |
| 5 inch straight pipe | Length:1m | 1 |
| 5 inch straight pipe | Length:0.5m | 1 |
| 5 inch elbow pipe | Elbow 90º(R=1m) | 2 |
| 5 inch elbow pipe | Elbow 90º(R=0.5m) | 2 |
| 5 inch elbow pipe | Elbow 45º(R=0.5m) | 1 |
| 5 inch elbow pipe | Elbow 30º(R=0.5m) | 1 |
| 5 inch pipe clamp | Diameter: 125mm | 30 |
| 6 inch pipe clamp | Diameter: 150mm (With Seal Washer) | 2 |
| Reducer Pipe | 150mm to 125mm | 1 |
| Spare Parts (Free) | ||
| No | Parts Name | Number |
| 1 | Toolbox | 1 PC |
| 2 | Internal hexagonal wrench | 1 SET |
| 3 | open end wrench | 1 SET |
| 4 | Key | 2 PCS |
| 5 | Toolbox | 1 PC |
| 6 | Screwdriver | 1 PC |
| 7 | Cross screwdriver | 1 PC |
| 8 | Wire plier | 1 PC |
| 9 | Small hammer | 1 PC |
| 10 | Grease Gun | 1 PC |
| 11 | Compound Gasket | 1 SET |
| 12 | O-ring | 1 SET |
| 13 | Sealing parts | 1 SET |
| 14 | Oil filter | 1 PC |
| 15 | Flameout handle | 1 PC |
| 16 | Diesel filter | 1 PC |
| 17 | Air filter | 1 PC |
| 18 | Cylinder sealing parts | 1 SET |
| 19 | Timer | 1 PC |
| 20 | Clip sealing parts (150mm) | 5 PCS |
| 21 | Jack | 1 PC |
| Prod Model: | SA200MP |
|---|---|
| Markets: | Africa,Mid East,Eastern Asia |
| Practical Max Output: | 20m³/H |
| Max. Pressure On Concrete: | 8MPa |
| The Type Of Distribution Valve: | S Tube Valve |
| Transportation Cylinder: | 180×800mm |
| Oil Tank Capacity: | 250L |
| Hopper Capacity: | 350L |
| Type: | Concrete Pump |
| Machining Process: | Vacuum |
| Certification: | CE |
| Condition: | New |
| Productivity: | 20cbm/Hour |
