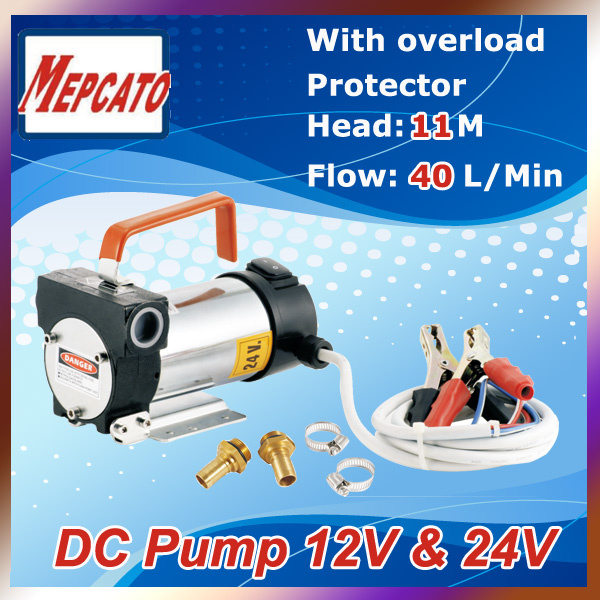

CARRY3000 Diesel transfer pumpFeatures- Cast iron pump body finished with anti-corrosion paint
- With overload protector
- By-pass valve incorporated in the pump body
- Motor protection class IP55
- Used in intermittent service with 30-minute work cycles
- Pump attachment support bracket
Available in 12 and 24 Voltage versions, provide with 3/4" threaded connectors on the pump body. Switch box and fuse carrier, reinforced base complete with power cables and pincers for connection to terminal strips.Application- As the primary system on earth-moving machinery.
- On mobile fuel pumps on vehicles or in construction yards.
|
Model |
Pump |
Motor |
RPM |
Connections |
Fuse on cable |
Weight
kg |
Package Dimension
mm |
Flow
rate
L/Min(max) |
Tension
V |
Current
Amp(max) |
Duty cycle
min |
|
CARRY3000 12V with cable 2m |
40 |
12 |
18 |
30 |
2800 |
3/4" G |
Yes |
4.2 |
215x120x160 |
|
CARRY3000 24V with cable 2m |
43 |
24 |
9 |
30 |
2800 |
3/4" G |
Yes |
4.2 |
215x120x160 |

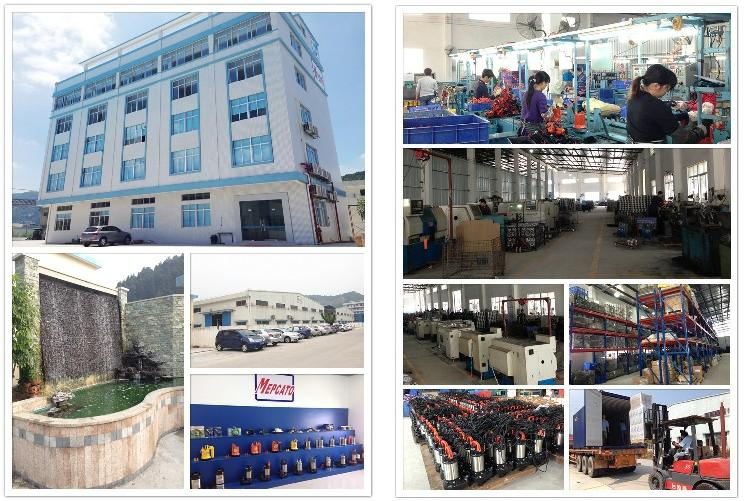

Jiangmen Mepcato Machinery Limited was invested by Hong Kong Shui Wing Machinery Import & Export Co. Ltd and founded in 2002. After more than 10 years development, we became a famous manufacture among the mainland China, Hong Kong, Asian and European countries.
