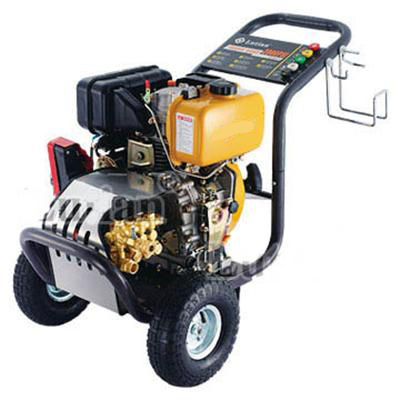

Description
Standard features
Performance-approved key start diesel engine
Commercial grade direct drive brass cylinder ceramic plungers radial direction pump
8m high-pressure hose
Quick connect nozzles 0° , 15° , 40° And chemical nozzle
Pressure adjustable
Low pressure detergent injector
Professional trigger gun with safety lock
10, 12-inch pneumatic wheels
In-line water filter
Convenient hose and gun hookWater inlet hose connector
Optional
Adjustable chemical injector
Thermal relief valve
Pressure gauge
Model |
15D28-7 |
15D36-10 |
18D35-10 |
Horse Power(HP) |
7 |
10 |
10 |
Revolution(rpm) |
3200 |
3200 |
3200 |
Max. Pressure |
bar |
193 |
248 |
|
PSI |
2800 |
3600 |
3500 |
Water Flow |
L/min |
14.4 |
18.0 |
|
GPM |
3.80 |
4.76 |
5.47 |
Pump Model |
3WZ-1508A |
3WZ-1510A |
3WZ-1808A |
Packing Dim.(cm) |
70x56x68.5 |
81x64.5x75.5 |
Gross Weight(kg) |
65 |
88 |
90 |
